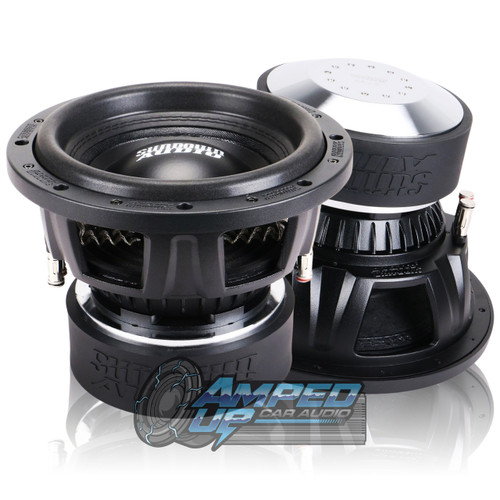

Sundown Audio SAv3 10" D4 Subwoofer | 1250W RMS
Brand : Sundown Audio
- SKU:
- SundownAudio-SAv3-10D4
Sundown Audio SAv3 10" D4 Subwoofer | 1250 Watts RMS – Deep Bass & High Performance
The Sundown Audio SAv3 10" D4 Subwoofer is engineered for powerful, precise, and deep bass, making it a top choice for car audio enthusiasts. Delivering 1250 Watts RMS, this subwoofer features a redesigned motor structure, optimized for efficiency and increased power handling. Inspired by the U v.2 series, the SAv3 10" D4 utilizes a smaller yet more efficient motor paired with a longer 2.75" coil for superior performance.
Key Features & Benefits:
Redesigned Motor for Enhanced Performance – Inspired by the U v.2 series, the motor is optimized for the 2.75" coil, providing improved efficiency and higher power handling.
Optimized Coil & Air Gap – Precision-wound coils ensure a balanced air gap, delivering consistent output between the D2 and D4 versions.
1250W RMS Power Rating – Advanced thermal management allows for better heat dissipation, increasing longevity and reliability in high-powered setups.
3D FEA Optimized Suspension System – A newly designed spider pack enhances cone control and excursion, delivering cleaner, deeper bass at high outputs.
Uv.2 Frame & Surround Platform – Built on the same rugged frame and surround as the U v.2 series, ensuring maximum durability and bass response.
Built for Bass Enthusiasts
Whether you're designing a competition-level SPL build or a powerful daily driver, the Sundown Audio SAv3 10" D4 Subwoofer is engineered to deliver hard-hitting, distortion-free bass. Its precision engineering, superior power handling, and durable construction make it an excellent choice for serious car audio enthusiasts.
Upgrade your system today with the SAv3 10" D4 and experience Sundown Audio’s legendary bass performance!
Specifications
| RE (Ohms) | 6.06 |
| FS (Hz) | 36 |
| VAS (L) | 8.497 |
| Qes | 0.509 |
| Qms | 2.445 |
| Qts | 0.421 |
| Le (mH) | 4.456 |
| BL (NA) | 31.742 |
| Mms (Grams) | 337.651 |
| Cms (uM/N) | 47.126 |
| Sens (dB @ 1w/1m) | 82.1 |
| Xmax | 22mm |
| T/S SPECS | SAV3 10″ D4 |
|---|
Enclosure Specifications
| Sealed Enclosure | 0.5 cu ft |
| Ported Enclosure | 1.0 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 15 sq in |
| Displacement | .17 cu ft |
| Depth | 6.92" |
| Outside Diameter | 11″ |
| Cut-Out | 9.5″ |
| Physical Dimensions | Download |
