How to Tune an Amplifier in Your Car: Complete Step-by-Step Guide from Amped Up Car Audio

Tuning an amplifier is one of the most critical steps in building a car audio system that sounds powerful, clean, and lasts for years. When most people hear “how to tune car amp,” they think of cranking knobs until the bass shakes the mirrors. That approach is exactly how speakers get blown and amps go up in smoke.

Real amplifier tuning means correctly setting gain, low pass filter (LPF), high pass filter (HPF), bass boost, and crossover points so your system delivers maximum clean output without distortion. This guide focuses specifically on car audio amplifiers—whether you’re running subs, full range speakers, or a complete multi-amp setup for daily driving. We’re not covering home audio or PA systems here.

This guide is for car audio enthusiasts, DIY installers, and anyone looking to get the best sound from their car stereo system.

At Amped Up Car Audio we help customers with their builds and help tune high-power systems every single day. From 500-watt street setups to multi-kilowatt competition builds, we’ve seen what works and what destroys equipment. This guide distills our real-world process so you can dial in your system at home.

The main goal is simple: get maximum clean output, protect your speakers and subs, and make the most of the power you paid for.

What this article covers:

• Safety preparation and essential tools

• Understanding every amp control (gain, LPF, HPF, bass boost, subsonic)

• Finding your head unit’s maximum clean volume

• Tuning gain by ear with no tools

• Tuning gain with a multimeter for precise, repeatable results

• Setting crossover filters for real music, including amp crossover settings for component speakers

• Balancing front, rear, and sub levels

• Gain matching multiple amplifiers

• Common mistakes and how to avoid them

• When to re-tune and when to call a professional

Introduction to Car Audio

Car audio is all about transforming your daily drive into a powerful listening experience. At the heart of every great car audio system is the amplifier, which takes the low-level output voltage from your head unit and boosts it to drive your speakers with authority. But simply installing an amp isn’t enough—how you tune it makes all the difference between muddy, distorted sound and crisp, dynamic audio that brings your music to life.

Proper tuning starts with understanding how your head unit volume, amplifier gain control, and crossover filters (high pass filter and low pass filter) work together. The head unit sends a signal to the amplifier, and the gain control matches the amp’s sensitivity to that signal. Set the gain slightly too high, and you risk distortion and speaker damage; too low, and you leave power and clarity on the table. The high pass filter ensures your range speakers only play frequencies they can handle, while the low pass filter sends deep bass to your subwoofers.

By carefully adjusting the gain, filters, and volume knob, you can tune your system for maximum clean output and full control over your sound. Whether you’re after chest-thumping bass or crystal-clear vocals, dialing in these settings is the key to unlocking the true potential of your car audio system.

---

Before You Start: Safety, Tools, and System Preparation

Proper prep prevents blown speakers, clipped amps, and wasted time. Rushing through setup is how most systems end up damaged before they ever sound their best.

Minimum tools you’ll need:

• Small flathead or Phillips screwdriver (for amp adjustments)

• Flashlight or headlamp (trunk work gets dark)

• Smartphone with test tone files, USB, or streaming access

• Basic AC multimeter (optional but highly recommended for precision)

Advanced tools for serious tuners:

• SMD DD-1 distortion detector (industry standard, detects clipping before you hear it)

• Oscilloscope (visual waveform analysis)

• RTA microphone and software

Safety basics before tuning:

• Keep engine running or use a strong secondary battery for extended tuning sessions

• Ensure good ventilation if working in a closed garage

• Verify no loose wiring that could short out

• Confirm fuse protection is in place on all power runs

Critical preparation steps:

• Disconnect subwoofers and speakers if using a multimeter to measure voltage directly from amp outputs. Once adjustments or measurements are complete, plug the RCA cables back into the amplifier channels to ensure proper signal flow.

• Verify your wiring first—correct gauge power and ground cables (0-4 gauge for high-power systems), solid ground point on bare metal, and proper fuse sizing

• A weak electrical system causes misleading readings and premature clipping

Pre-Tuning Checklist for Your Car Stereo

Before you dive into tuning your amplifier, it’s crucial to set your car stereo up for success. Start by resetting all your controls to their default or neutral positions. Set the bass boost to zero—this prevents any artificial low-end lift that could mask distortion or lead to blown speakers. Adjust the high pass filter to its minimum frequency and the low pass filter to its maximum, ensuring your system is wide open and ready for precise tuning.

Next, set your head unit volume to about 70-80 percent. This gives you a safe starting point and helps prevent accidental distortion as you begin making adjustments. Disconnect any extra accessories, like additional speakers or amplifiers, to eliminate interference and keep your signal path clean.

As you begin tuning, use the gain control to slowly increase the amplifier’s input sensitivity. Listen carefully for any signs of distortion—if you hear it, back off the gain slightly. This careful approach helps you find the sweet spot where your system delivers powerful, clean sound without risking speaker damage. By following this checklist, you’ll ensure your car stereo is primed for optimal tuning and ready to deliver the best possible audio performance.

---

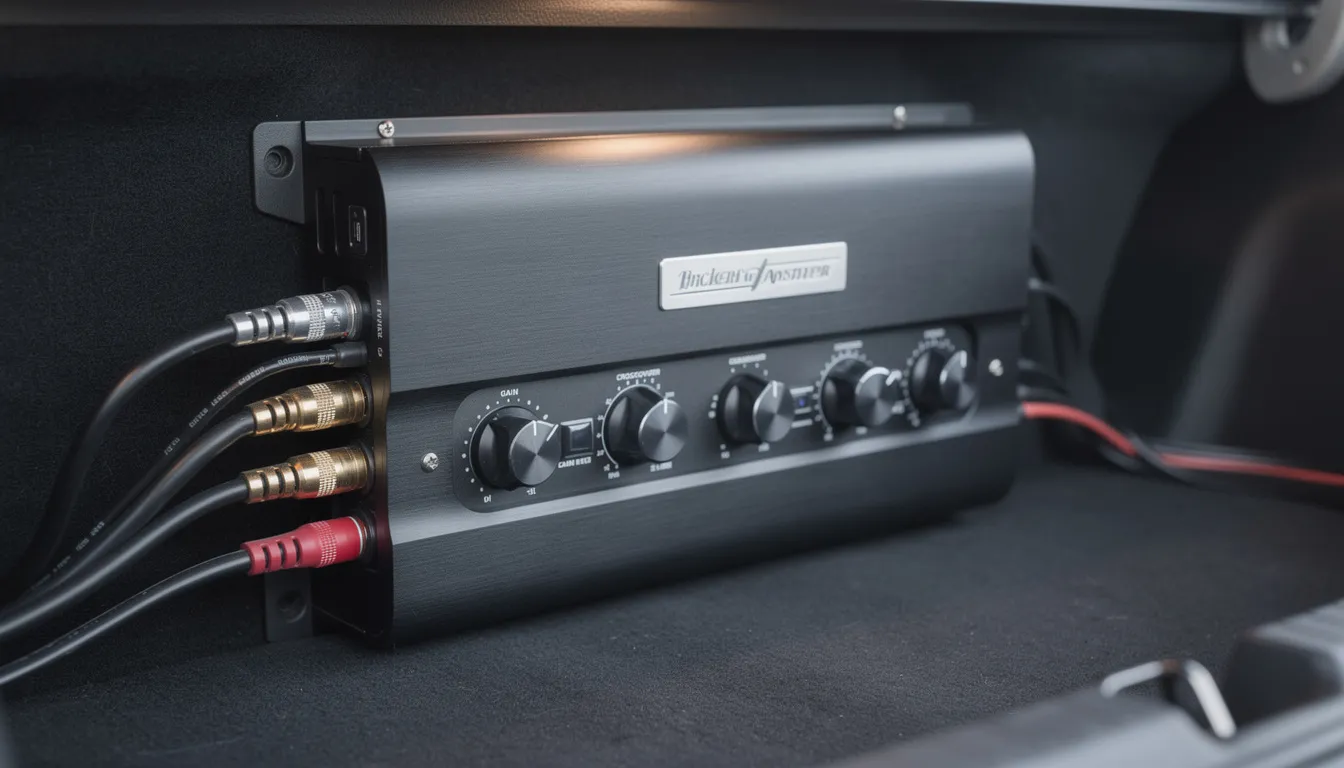

Key Amp Controls Explained: Gain, LPF, HPF, Bass Boost & More

Understanding the knobs on your amplifier prevents the “just turn stuff until it gets loud” approach that damages most systems. Each control has a specific purpose, and knowing what they do is half the battle.

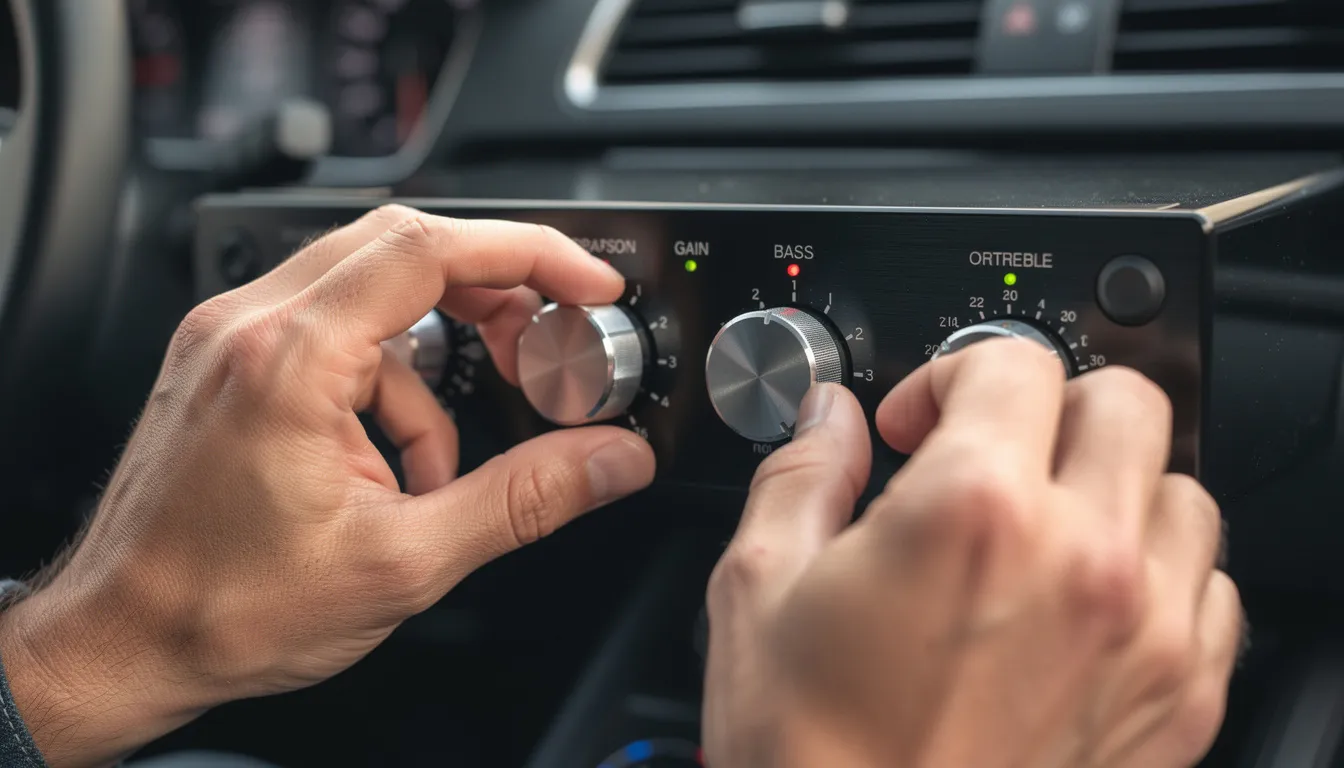

• Gain (Input Sensitivity): This is not a volume knob. Gain control matches your amplifier’s input sensitivity to the output voltage coming from your head unit or DSP. When set correctly, you get full clean power. When set wrong, you get clipping that destroys voice coils through excessive heat. This is the single most important control to get right.

• LPF (Low Pass Filter): Allows only frequencies below a set point to pass through. Used on subwoofer channels to block midrange and high frequencies from reaching your subs. Starting point for most daily drivers: 60–90 Hz.

• HPF (High Pass Filter): Blocks deep bass frequencies from reaching door speakers and tweeters, preventing distortion and mechanical damage. Typical starting points: 60–80 Hz for mids, 3–4 kHz for tweeters in passive systems. This is essential when learning how to tune a car amp for mids and highs.

• Full Range / HPF / LPF Switch: Many 4-channel amps include this selector. Use HPF mode for front and rear speakers, LPF mode for subwoofer channels, and Full Range only when feeding a separate crossover or DSP.

• Bass Boost: A narrow EQ boost, often centered around 45 Hz. Use this extremely sparingly or leave it at zero. Bass boost adds gain at that frequency, which can push your amp into clipping and burn voice coils fast.

• Equalizer: An equalizer (EQ) allows you to adjust specific frequency bands to shape the overall sound of your system. During initial amplifier tuning, it’s best to set your equalizer to 'Flat' or disable it entirely. This ensures you’re hearing the true output of your amp and speakers without any frequency boosts or cuts, making it easier to achieve accurate results.

• Subsonic Filter: Protects ported subwoofer enclosures by blocking frequencies below the box’s tuning point. Set 3–6 Hz below your enclosure’s tuning frequency (example: 27–30 Hz on a box tuned to 33 Hz) to prevent the woofer from unloading and over-excursing.

Step 1: Reset the Head Unit and Amplifier to a Neutral Baseline

You must start with a completely flat signal path so you aren’t tuning around hidden boosts, loudness features, or EQ curves that will throw off your results.

On the head unit (car stereo):

• Set bass, treble, and midrange to 0 (center position)

• Select “Flat” EQ curve or disable any preset EQ

• Turn loudness compensation off

• Set sub level control to 0

• Disable any “bass boost,” “sound enhancer,” or DSP effects

Signal routing:

• Set fader and balance to center so all channels receive the same reference signal during tuning

On DSPs (if installed):

• Load a neutral or blank tune

• Remove all EQ boosts and cuts

• Disable limiters temporarily

• Bypass crossovers while setting basic gains

On the amplifier:

• Turn gain all the way down (fully counterclockwise)

• Set bass boost to 0 dB

• Set LPF to its highest frequency setting (or switch to “Full”)

• Set HPF to its lowest frequency setting (or switch to “Full”)

• If your amp has a subsonic filter, leave it off initially

For multi-amp systems:

• Tune front-stage amplifiers first, then sub amplifiers

• Work through one amplifier at a time to avoid confusion

Step 2: Find Your Head Unit’s Maximum Clean Volume

This step establishes your permanent reference point—the max volume level you should never exceed. All gain tuning is based on this number.

Download test tones:

• 0 dB sine wave at 40 Hz (for sub amps)

• 0 dB sine wave at 1 kHz (for mids and highs)

• Save these to a USB drive or use a reliable streaming source

Finding the clean volume threshold:

• With gains still at minimum and filters wide open, play the 1 kHz test tone

• Slowly increase your radio’s volume, turning it up to its maximum volume while listening carefully

• When the pure “hum” sound transforms into a “buzz,” distortion has begun

• Back off 2–3 clicks from where you first hear distortion—this is your clean maximum

Without test tones:

• Play clean, well-recorded music (avoid heavily compressed tracks)

• Set the radio volume to approximately 75–80% of its maximum volume on factory radios

• For quality aftermarket units like Pioneer, Alpine, or Kenwood, you can typically reach 85–90% of the radio’s maximum before clipping

Document your reference:

• Write down this volume number (example: “Volume 34 of 40”)

• Never exceed this level during normal listening

• If you swap head units later, repeat this entire step—clipping points vary by model and brand

For advanced users, an SMD DD-1 or oscilloscope can pinpoint this threshold more precisely by detecting distortion before it becomes audible, allowing you to fine-tune your system down to the last bit of distortion for precise calibration.

Step 3: Setting Gain Using an SMD DD1 (Best Method)

The SMD DD1 distortion detector is the most reliable and safest tool for setting amplifier gain because it senses distortion before actual clipping occurs, protecting your speakers and gear.

Steps:

1. Play a test tone at either 40 Hz for subwoofers or 1 kHz for full-range speakers.

2. Connect the DD1 device to your amplifier’s output terminals or the RCA signal output.

3. Increase your head unit volume to the clean maximum reference level you established earlier.

4. Slowly turn up the amplifier gain while watching the indicator lights. Make sure the 40 Hz or 1 kHz signal lights up on the SMD DD1.

5. Stop increasing gain as soon as the DD1 signals distortion.

6. Slightly reduce the gain to ensure the signal remains clean and distortion-free.

With this method, your amplifier gain is perfectly matched to your system’s input, delivering maximum clean power without risking damage.

---

Step 4: Setting Gain Using an Oscilloscope

An oscilloscope provides a visual representation of the audio waveform, allowing you to detect distortion by sight.

Steps:

1. Play a 0 dB sine wave test tone through your system.

2. Observe the waveform on the oscilloscope as you gradually increase the amplifier gain.

3. The moment the waveform shape becomes distorted or stops being perfectly smooth and round, distortion has begun.

4. Reduce the gain until the waveform returns to a clean, undistorted shape.

This method ensures you set your gain at the highest level possible without introducing clipping or distortion.

---

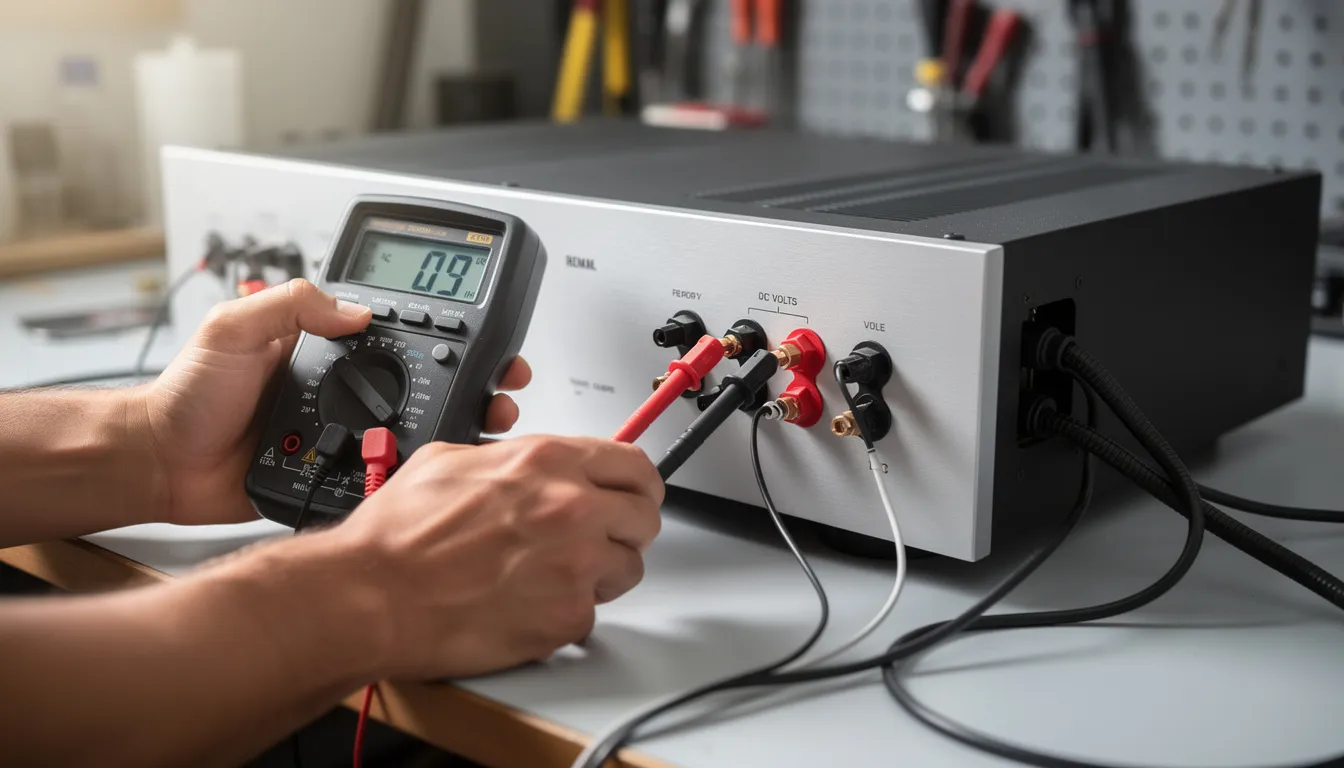

Step 5: Setting Gain Using a Multimeter (AC Voltage Method)

This cost-effective method uses a multimeter to measure the amplifier’s output voltage and set gain precisely.

Step 1: Calculate Target Voltage

Use the formula:

Voltage = √(Power × Impedance)

For example, a 1000-watt amplifier driving a 1-ohm load requires:

Voltage = √(1000 × 1) = 31.62 V AC

Step 2: Play Test Tone

• Use a 40 Hz tone for subwoofer channels.

• Use a 1 kHz tone for full-range speakers.

• Set your head unit volume between 75% and 80%, or up to 85%–90% for high-quality radios like Pioneer, Alpine, or Kenwood.

Step 3: Measure Output Voltage

Place the multimeter probes on the amplifier’s speaker output terminals.

Step 4: Adjust Gain

Turn the amplifier gain control until the multimeter reads your calculated target voltage.

Once finished, reconnect your speakers and verify everything sounds clean.

---

Step 6: How to Set Gain on Car Amp Using Test Tones by Ear

If you don’t have access to measurement tools, you can still achieve a close-to-ideal gain setting by listening carefully to test tones.

Steps:

1. Download 0 dB test tones at 40 Hz, 100 Hz, 400 Hz, 800 Hz, and 1 kHz.

2. Set your EQ to your usual listening preferences.

3. Turn the amplifier gain down to minimum.

4. Raise the head unit volume until the test tone starts to buzz or distort.

5. Lower the head unit volume until the sound returns to a clean hum.

6. Gradually increase the amplifier gain until the buzz reappears.

7. Back off the gain slightly to eliminate distortion.

The 400 Hz tone is often the easiest frequency to detect distortion by ear, making it a useful reference for fine-tuning your gain settings.

---

Important Meter Accuracy Tip

Most budget multimeters provide accurate AC voltage readings only around 50 to 60 Hz. Therefore, using a test tone between 40 Hz and 60 Hz for subwoofer amplifiers will yield more reliable voltage measurements. Higher frequency tones can cause the meter to show lower, misleading voltage readings.

---

How to Gain Match Multiple Amplifiers (The Right Way)

Proper gain matching across multiple amplifiers ensures balanced output and prevents any single amplifier from being overworked or distorting prematurely.

Professional Approach:

1. Play a test tone—40 Hz for subwoofers or 1 kHz for mids and highs.

2. Measure the AC voltage output of each amplifier individually.

3. Identify the amplifier with the lowest clean output voltage; this amplifier sets the system’s limit.

4. Adjust the gain controls on all other amplifiers to match that lowest voltage exactly.

Remember, gain matching is done by voltage output, not by matching knob positions. This method guarantees all amps clip simultaneously, resulting in a balanced soundstage, improved imaging, and more efficient use of your system’s power.

Step 7: Amp Crossover Settings for Component Speakers and Subwoofers

Filters decide which speakers play which frequencies. Proper crossover settings prevent distortion, protect speakers from mechanical damage, and dramatically improve clarity across the entire frequency range.

Subwoofer amplifier settings (How to tune car amp for subwoofer):

• Start LPF around 70–80 Hz

• Use whatever slope your amp provides (12 dB/octave or 24 dB/octave)

• Fine-tune by ear for seamless blend with door speakers

• Lower the LPF if subs sound “boomy” or are playing too much midrange

Front components or coaxials (2-channel or 4-channel amp):

• Set HPF in the 60–80 Hz range depending on driver size

• 6.5” door speakers: 80 Hz HPF is a solid starting point

• 4” speakers: 100 Hz or higher to protect smaller drivers

• This prevents door speakers from trying to reproduce deep bass they can’t handle

Active tweeter channels:

• Tweeters typically start around 3–4 kHz HPF

• Always reference manufacturer specifications rather than guessing

• Setting too low sends damaging frequencies to delicate tweeter diaphragms

Subsonic filter (ported enclosures only):

• Set 3–6 Hz below your enclosure’s tuning frequency

• Example: Box tuned to 33 Hz → subsonic filter at 27–30 Hz

• This prevents the woofer from unloading below tuning, which causes excessive excursion and potential damage

Dialing in with music:

• Play full-range music at moderate volume

• Adjust LPF and HPF in small steps (5 Hz at a time)

• Listen for a seamless handoff where vocals remain clear and bass feels like it originates from the front, not just the trunk

• The distortion disappears when crossover points are set correctly

Common crossover mistakes:

• Too much overlap between sub and mids creates boomy, muddy midbass

• Gaps in the crossover region (60–120 Hz) make the system sound thin and weak

• Forgetting that rear speakers may need different HPF settings than fronts

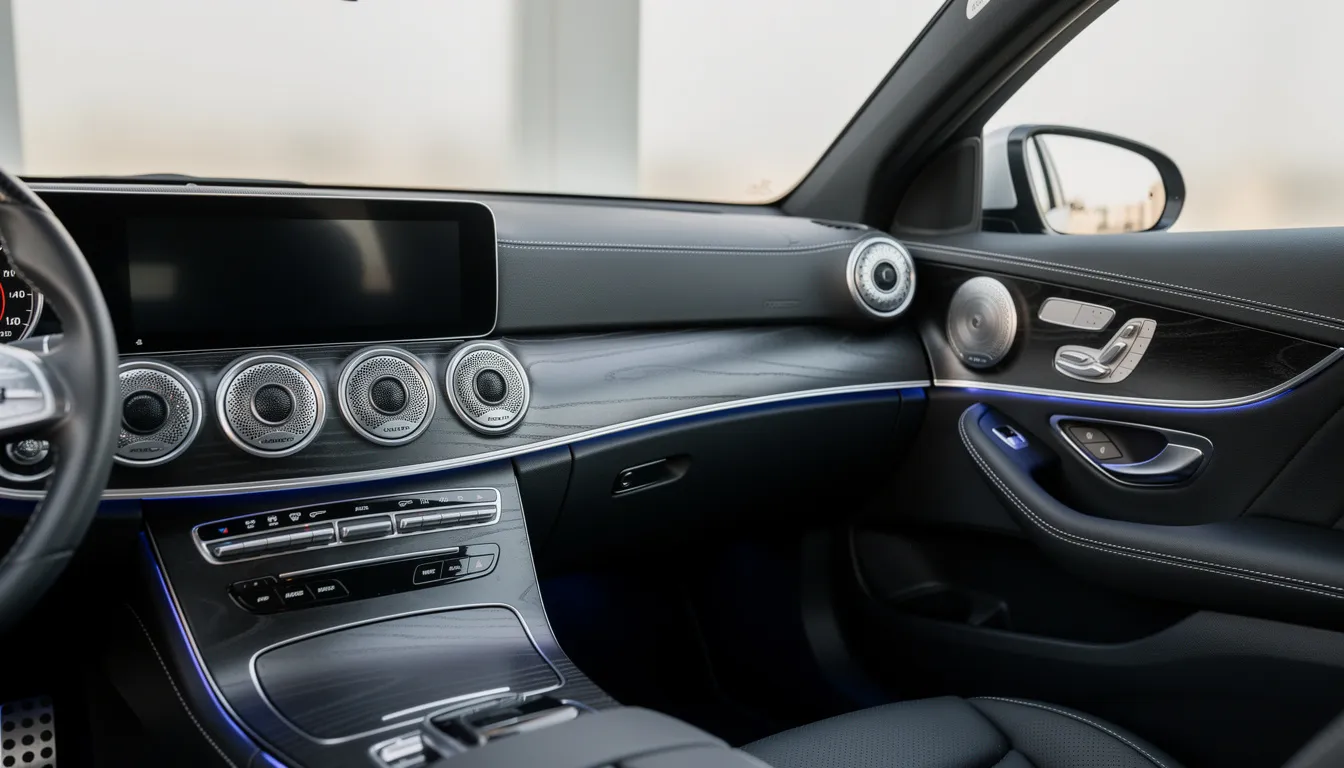

Step 8: Balancing Front, Rear, and Sub Levels for a Cohesive Soundstage

The goal is a strong front stage where vocals and instruments feel anchored at the dashboard, rear speakers providing subtle fill, and subs blending so seamlessly that bass appears to come from in front of you rather than behind your head.

Set front speakers as your reference:

• Front channels should be the loudest and clearest

• Aim for realistic vocal level with imaging centered near the dash

• This establishes the foundation for everything else

Bring up rear speakers conservatively:

• Increase rear amp gains only enough to create ambience and depth

• Overly loud rear speakers pull the entire soundstage behind the listener

• In many systems, rears work best at 3–6 dB lower than fronts

Blend the subwoofer:

• With crossovers already set, slowly increase sub amp gain

• Stop when bass is powerful but not overwhelming vocals

• Most balanced systems have subs feeling about 3–6 dB hotter than mids subjectively

• If you can’t hear the lyrics clearly, your subs are too loud

Test across multiple genres:

• Play hip-hop, rock, country, and EDM at your reference volume

• A well-tuned system sounds balanced across different recording styles and mixes

• If one genre sounds perfect but another sounds terrible, your balance needs adjustment

Adjustment strategy:

• Make small, incremental changes—one click or a few degrees at a time

• Your ears fatigue quickly during tuning sessions

• Take short breaks to reset your hearing and improve judgment

• Come back with fresh ears before making final decisions

Getting More Power from Your Amplifier

Unlocking more power from your amplifier isn’t just about cranking up the volume—it’s about smart, precise adjustments that maximize output while protecting your gear.

• The gain control on your amp determines how much voltage coming from the head unit is amplified, while the volume knob on your car stereo sets the overall loudness you hear.

• To safely get more power, slowly turn the gain control clockwise while monitoring the output voltage and listening for any signs of distortion or background noise.

Don’t forget to fine-tune your high pass filter and low pass filter settings. These controls let you tailor the frequency range each speaker receives, ensuring your full range speakers aren’t overwhelmed by deep bass and your subwoofers handle only the low-end punch.

By optimizing these filters, you get more control over your system’s sound and prevent speaker damage from unwanted frequencies.

Always make adjustments in small increments, and listen closely as you go. If you notice distortion or a drop in sound quality, dial the gain back slightly.

The goal is to achieve a full range of sound—tight bass, clear mids, and crisp highs—without pushing your system into dangerous territory.

With the right balance of gain, filters, and volume, you’ll enjoy more power, more control, and a car audio experience that truly stands out.

Advanced Tips: Gain Matching Multiple Amplifiers the Right Way

Multi-amp systems—separate front, rear, and sub amps, or multiple sub amplifiers—benefit enormously from proper gain matching. The goal is having all amplifiers reach their clean clipping point at the same time, ensuring balanced output and preventing one amp from doing all the work.

The voltage-matching method:

• Play a test tone (40 Hz for sub amps, 1 kHz for mids/highs).

• Measure AC output voltage from each amplifier at its clean setting.

• Use your multimeter at the speaker terminals with speakers disconnected.

Identify your limiting amp:

• Find which amplifier produces the lowest clean output voltage at your reference head unit volume.

• This amp sets the ceiling for your entire system.

Match all other amps to that voltage:

• Adjust gains on remaining amplifiers until they all read the same output voltage.

• You are not matching knob positions—you are matching voltage output.

• Two amps with identical knob positions can have wildly different outputs (up to 30% variance).

Benefits of proper gain matching:

• Balanced system where no single amp works harder than others.

• Improved imaging and soundstage coherence.

• Consistent SPL output in competition and demo builds.

• Real-world testing shows 2–4 dB louder clean output without distortion.

Advanced technique—gain overlap:

• Some experienced tuners use −5 dB or −10 dB test tones instead of 0 dB.

• This recovers 5–10 dB of usable SPL on capable systems.

• Only attempt this if you understand the risks and have measurement tools.

If you’re unsure about pushing overlap on multi-kilowatt setups, consult a professional or contact Amped Up Car Audio for guidance.

Common Mistakes When Tuning an Amplifier (and How to Avoid Them)

Most blown speakers and “my amp went up in smoke” stories trace back to a handful of predictable errors. Avoid these and your system will sound better and last longer.

Mistake	Why It’s a Problem	The Fix
Using gain as a volume knob	Creates heavy clipping at moderate volumes, destroying speakers through heat	Set gain once to match head unit output, then use the volume knob on your car stereo
Leaving loudness/EQ boosts on during setup	Adds hidden gain that causes clipping when you add more boost later	Reset everything to flat before tuning, add EQ preferences afterward
Setting gains with random music	Music is recorded at varying levels (8–12 dB below 0 dB typically), causing 4–8 dB mismatches	Use 0 dB test tones or at minimum, use well-recorded reference tracks you know intimately
Matching knob positions instead of voltage	Two identical amps can output 30% different voltage at the same knob position	Verify by measuring AC voltage or careful listening, not visual knob alignment
Ignoring electrical limitations	Weak alternator, undersized power wire, or bad ground causes voltage drops and unpredictable clipping	Upgrade electrical before expecting more power—big-three kit, proper gauge wiring, solid grounds
Never re-checking after changes	Swapping subs, speakers, or head units changes the entire equation	Re-tune after any major modification; tuning is not “set and forget”

Remember: Clipping is what kills speakers, not “too much power.” A clean 1000 watts is safer than a clipped 300 watts. Even 1% distortion under prolonged exposure can reduce speaker lifespan by 50%.

When to Re-Tune and When to Call a Professional

Some systems—especially those exceeding 2,000 W RMS or featuring active front stages with DSP—benefit significantly from professional tuning with oscilloscopes, RTAs, and calibrated microphones.

Situations requiring re-tuning:

• Installing a new amplifier

• Swapping your head unit or adding a DSP

• Changing speakers or subwoofers

• Modifying enclosure design or tuning frequency

• Adding extra batteries or a high-output alternator

• Any electrical upgrade that changes available voltage

Red flags indicating gains or filters are set wrong:

• Frequent amp thermal shutdown, especially at moderate volume

• Burning smell from speakers or subwoofers

• Subs rattling or bottoming out at low volume

• Vocals sounding harsh, compressed, or fatiguing

• Background noise, hum, or hiss that wasn’t there before

When to seek professional help:

• High-power competition or demo builds benefit from oscilloscope and RTA tuning

• For online customers, contact us for gear recommendations—amps, subs, wiring, batteries, and eco bass knobs—that are easier to tune and match together

Don’t wait until something fails. A quick re-tune after changes can dramatically extend equipment life and deliver more control over your system’s performance.

Conclusion

Dialing In Your System with Amped Up Car Audio

Proper amplifier tuning means clean gains, smart filter settings, and balanced levels—not “everything maxed out.” When done correctly, your system gets louder without strain, bass tightens up, highs smooth out, and your equipment lasts years longer.

Quick recap of the process:

• Reset head unit and amp to flat baseline settings

• Find your clean head unit volume reference and never exceed it

• Set gains by ear or multimeter to match amp input sensitivity to head unit output

• Configure LPF and HPF crossovers for proper frequency range separation, including amp crossover settings for component speakers

• Balance front, rear, and sub levels for cohesive soundstage

The benefits of proper tuning:

• 20–30% louder clean output without distortion

• Tighter, more controlled bass response

• Smoother highs with less listener fatigue

• Full utilization of your amplifier’s rated power

• 2–3x longer equipment lifespan

Ready to upgrade or need tuning help?

Shop Amped Up Car Audio online for amplifiers, subwoofers, speakers, wiring kits, batteries, and tuning tools like the SMD DD-1. We also carry accessories like eco bass knobs for convenient level adjustment from the driver’s seat.

If you’re unsure about any step in this guide, call, email, or visit us online for personalized system design and tuning advice. We’re here to help you get dialed in the right way—because at Amped Up Car Audio, we believe every system deserves to sound as good as the gear inside it.
