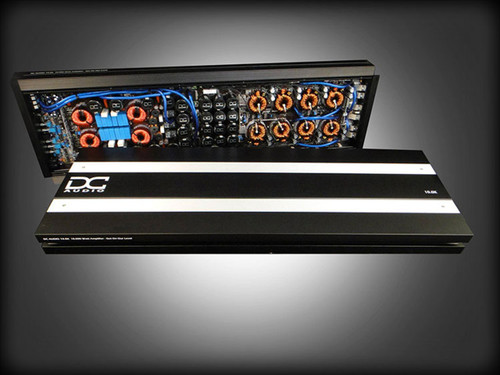

DC Audio 10.0k Amplifier

The 10.0k competition series amplifier is rated as a 10,000 watt mono block. It comes with a bass knob that has a built in Clipping indicator. It is designed for 12-volt systems and will not function over 15.3 volts. Charging over 15.3 will void your warranty.

Output Power (RMS):

3,000x1 @ 4 ohms 14.4 volts
5,500x1 @ 2 ohms 14.4 volts
10,000x1 @ 1 ohms 14.4 volts

Key Features:

1 ohm stable
Variable low pass filter
Variable subsonic filter
Variable bass boost
RCA Pass Thru
Wired remote control
Clipping Indicator
8awg Speaker Terminals
Triple 1/0awg Power and Ground Inputs
Tiffany Style RCA Jacks

Full Specs:

DC Amp Model:	10.0k
Input Sensitivity	6V~0.2V
Frequency Response	15Hz~270Hz
24dB / Octave Crossover	YES
Low Pass	35Hz ~ 250Hz
Subsonic Filter	10Hz-50hz
Bass Boost @45hz	0 ~ 9db
Phase Shift	0 ~ 180
Remote Control	Yes
Clip Indicator	Yes
Signal to Noise Ratio	dB100
Damping Factor	150<
THD @ 4ohms	Less than 0.1%
Fuse Rating	External 350 amp x 3
LED Status Lights	Power and Protect
Master/Slave	No
Heatsink Length	37.0"/940mm
Heatsink Width	11.5"/292mm
Heatsink Height	2.6"/66mm
