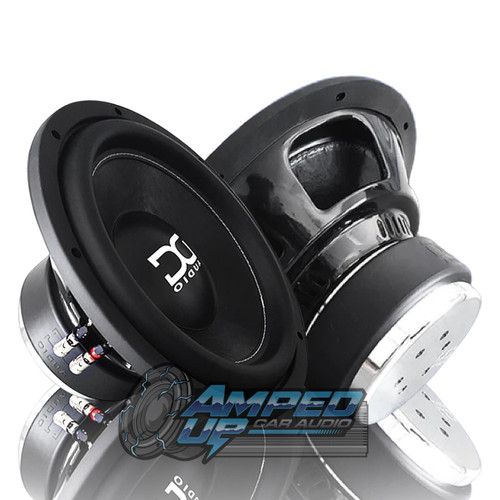

DC Audio Level 1 10" inch DVC D4 Ohm (Level 1 Series) Subwoofer 300 Watts RMS
Brand : DC Audio
- SKU:
- DCAudio-Level1-10D4-Subwoofer
Subwoofer Description
The Long awaited Level 1 Subwoofer is finally here!
It starts out with a double-stacked FEA optimized motor. A chrome top plate and T yoke. 2.0" voice coil, Glossy Black stamped Steel Frame, push terminals and a rating suggestion of 300w RMS/600w peak power handling.
This sub works great in sealed or ported enclosures.
Key Features
• Stitched surround and paper cone assembly
• Rubber Motor boot with DC Logo
• Polypropylene dust cover with DC logo
• Heavy duty interweaved tinsel lead wire sewn to the spider
• Stamped Steel black frame
• FEA analyzed and optimized motor assembly - Fully CNC machined
• Rubber mounting gasket
• Chrome spring loaded push terminals
• 2.0” voice coil
T/S Parameters
| M3 Level 1 Subwoofers | 10" | 12" |
|---|---|---|
| Mounting Depth | 6" | 6.5" |
| Mounting Hole Diameter | 9.3" | 11.2" |
| Outside Driver Diameter | 11" | 12.5" |
| VC Diameter | 2.0" | 2.0" |
| Displacement | .12 ft | .14ft |
| Power Handling rms/peak | 300/600 | 300/600 |
| Ohm Options | d2/d4 | d2/d4 |
| Sd | 324 cm | 481 cm |
| Vas | 17.1 L | 47.7 L |
| Cms | 0.12 Mm/n | 0.12 Mm/n |
| Mms | 146.8 g | 168 g |
| Fs | 37 Hz | 32.6 Hz |
| Bl | 23.2 N/A | 23.2 N/A |
| Re | 8 Ohm | 8 Ohm |
| Le | 3.88 mH | 2.79 mH |
| Qms | 3.15 | 2.52 |
| Qes | 0.52 | 0.51 |
| Qts | 0.45 | 0.43 |
| Xmax | 19mm | 19mm |
| Ref SPL @1 watt | 84.2 db | 86.9 db |
| Suggest Sealed Box | .5 ft | .75 ft |
| Suggested Ported Box | 1.0 ft |
1.25 ft |
FREE SUBWOOFER BOX DESIGN BELOW
Click HERE for a FREE Single Level 1 10" Ported Box Enclosure Design
