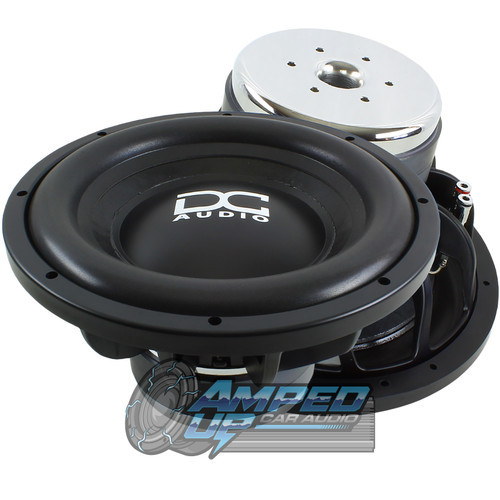

DC Audio Level 2 10" inch DVC D2 Ohm (Level 2 Series) Subwoofer 600 Watts RMS

Description

Subwoofer Description

With more power handling than before, the Level 2 is back and better than ever!

This sub has everything you need in a daily driver except the cost. This is one of our greatest accomplishments.

It starts out with a double-stacked FEA optimized motor. A chrome top plate and T yoke to keep it looking good. It has 22 mm of X-Max, progressive spider, 2.5" voice coil, cast basket, push terminals and a rating suggestion of 600w RMS/1200w peak power handling.

This sub works great in sealed or ported enclosures and definitely gives you more bang for your buck! Made with high quality parts. Designed in the USA by American Audio Engineers.

Key Features

• Extremely rigid non-pressed paper cone assembly

• Multilayered polymer wide roll foam surround

• Polypropylene dust cover with DC logo

• Dual 8" OD flat linear roll spiders

• Heavy duty interweaved tinsel lead wire sewn to the spider

• Cast aluminum black frame / no invert mount

• FEA analyzed and optimized motor assembly - Fully CNC machined

• Rubber mounting gasket

• Chrome spring loaded push terminals

• 2.5” Hi-temp copper voice coil wound on black anodized voice coil former

• Rubber magnet cover

T/S Parameters

M3 Level 2 Subwoofers
10"
12"


Mounting Depth
5.5"
6.1"

Mounting Hole Diameter
9.35"
11.00"

Outside Driver Diameter
11"
12.5"

VC Diameter
2.5"
2.5"

Displacement
.12 ft
.14ft

Power Handling rms/peak
600/1200
600/1200

Ohm Options
d2/d4
d2/d4

Sd
324 cm
481 cm

Vas
13.89 L
30.6 L

Cms
0.095 Mm/n
0.095 Mm/n

Mms
210 g
245 g

Fs
35.6 Hz
33 Hz

Bl
24 N/A
24 N/A

Re
7.2 Ohm
7.2 Ohm

Le
7 mH
7 mH

Qms
8.96
8.46

Qes
0.592
0.639

Qts
0.555
0.594

Xmax
22mm
22mm

Ref SPL @1 watt
82.1 db
84.2 db

Suggest Sealed Box
.5 ft
.75 ft

Suggested Ported Box
1.0 ft
1.25 ft

M3 Level 2 Subwoofers	10"	12"
Mounting Depth	5.5"	6.1"
Mounting Hole Diameter	9.35"	11.00"
Outside Driver Diameter	11"	12.5"
VC Diameter	2.5"	2.5"
Displacement	.12 ft	.14ft
Power Handling rms/peak	600/1200	600/1200
Ohm Options	d2/d4	d2/d4
Sd	324 cm	481 cm
Vas	13.89 L	30.6 L
Cms	0.095 Mm/n	0.095 Mm/n
Mms	210 g	245 g
Fs	35.6 Hz	33 Hz
Bl	24 N/A	24 N/A
Re	7.2 Ohm	7.2 Ohm
Le	7 mH	7 mH
Qms	8.96	8.46
Qes	0.592	0.639
Qts	0.555	0.594
Xmax	22mm	22mm
Ref SPL @1 watt	82.1 db	84.2 db
Suggest Sealed Box	.5 ft	.75 ft
Suggested Ported Box	1.0 ft	1.25 ft
