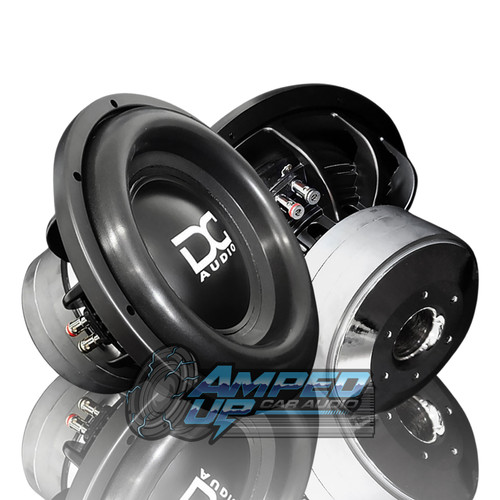

DC Audio Level 3 12" inch DVC D2 Ohm (Level 3 Series) Subwoofer 1000 Watts RMS
Brand : DC Audio
- SKU:
- DCAudio-Level3-12D2-Subwoofer
- Availability:
- Estimated build time is 7 - 10+ business days
Subwoofer Description
The XL SPL is the next generation of our most award winning driver. The XL SPL has an added pole vent , redesigned top plate and T yoke, larger magnets wrapped in a stylish motor boot an 8 layer flat wound voice coil, upgraded cone and surround. We are always looking to make great even better and the XL SPL is again a step in that direction. Anyone looking for a subwoofer that not only sounds great but is a beast in the SPL lanes, look no further, you have found what you have been searching for.
Key Features
• Extremely rigid non-pressed paper cone assembly
• Multilayered polymer foam surround
• Polypropylene dust cover with DC logo
• Triple Stiff 8"OD semi cup progressive roll spiders
• Dual Extra heavy duty interweaved tinsel lead wire
• Cast aluminum black frame / no invert mount
• FEA analyzed and optimized motor assembly – Fully CNC machined
• Rubber mounting gasket
• Chrome spring loaded push terminals
• Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Coil
• Rubber magnet cover
T/S Parameters
| 10" | 12" | 15" | 18" | |
|---|---|---|---|---|
| Mounting Depth | 8.25" | 9" | 10.25" | 11.25" |
| Mounting Hole Diameter | 9.35" | 11" | 14" | 16.75" |
| Outside Driver Diameter | 11" | 12.5" | 15.7" | 18.5" |
| VC Diameter | 3.0" | 3.0" | 3.0" | 3.0" |
| Displacement | .18 ft | .19 ft | .23 ft | .26ft |
| Power Handling rms/peak | 2200/4400 | 2200/4400 | 2200/4400 | 2200/4400 |
| Ohm Options (dual) | .7/1/1.4/2/4 | .7/1/1.4/2/4 | .7/1/1.4/2/4 | .7/1/1.4/2/4 |
| Sd | 324 cm | 494 cm | 791 cm | 1159 cm |
| Vas | 12.42 L | 25.77 L | 66.02 L | 144.36 L |
| Cms | 0.085 Mm/n | 0.08 Mm/n | 0.07 Mm/n | 0.07 Mm/n |
| Mms | 171.77 g | 213.7 g | 306.7 g | 346.07 g |
| Fs | 41.7Hz | 38.5 Hz | 34.3 Hz | 32.3 Hz |
| Bl | 22.73 N/A | 22.73 N/A | 22.73 N/A | 22.73 N/A |
| Re | 3.98 Ohm | 3.98 Ohm | 3.98 Ohm | 3.98 Ohm |
| Le | 5.2 mH | 5.2 mH | 3.5 mH | 3.5 mH |
| Qms | 11.24 | 12.92 | 8.18 | 8.32 |
| Qes | 0.35 | 0.403 | 0.706 | 0.718 |
| Qts | 0.34 | 0.391 | 0.65 | 0.661 |
| Xmax | 26mm | 26mm | 26mm | 26mm |
| Ref SPL @1 watt | 85.9 db | 87.5 db | 87.3 db | 90.4 db |
| Suggest Sealed Box | .75 ft | 1.0 ft | 2.0 ft | 3.5 ft |
| Suggested Ported Box | 1.0 ft | 1.50 ft | 3.0 ft | 5.5 ft |
FREE SUBWOOFER ENCLOSURE DESIGNS BELOW
Click HERE for a FREE Dual Level 3 12" Ported Box Enclosure Design
