DC Audio Level 5 12" inch DVC D0.5 Ohm (Level 5 Series) Subwoofer 3500 Watts RMS

Here it is, the m5 Elite version of the Lv5 subwoofer. Built for ground pounding and taking abuse in or out of the competition lanes.

When we went to the drawing board with this one we were looking to make improvements in cooling, motor force and soft parts.

The end result is a sub that works great in the SPL lanes as well as Pounding out the LOWS!!

To really step it up with this driver take a look at the Carbon Fiber options available for it.

• Extremely strong kraft pulp fiber reinforced cone

• Wide Long Throw foam surround

• Dome propylene dust cover with White DC logo

• 10” OD Spaced Spiders

• Extra heavy duty sewn tinsel lead wire

• Cast DC Series aluminum black frame / no invert mount

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket

• 8 Awg OFC Direct Leads

• 3.5” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum former

• Rubber magnet cover

M5 Level 5 Subwoofer	12"	15"	18"
Mounting Depth	10.5"	11.75"	12.75"
Mounting Hole Diameter	11.15"	14.25"	16.9"
Outside Driver Diameter	12.5"	15.7"	18.5"
VC Diameter	3.5"	3.5"	3.5"
Displacement	.19 ft³	.23 ft³	.26 ft³
Power Handling RMS	3500 watts	3500 watts	3500 watts
Power Handling PEAK	7000 watts	7000 watts	7000 watts
Ohm Options	d.7/d1/d2	d.7/d1/d2	d.7/d1/d2
Sd	494 cm²	791 cm²	1159 cm²
Vas	18.19 L	48.98 L	N/A L
Cms	0.06 Mm/n	0.05 Mm/n	0.06 Mm/n
Mms	442.0 g	487.2 g	534.19 g
Fs	30.59 Hz	30.7 Hz	29.85 Hz
Bl	29.21 N/A	31.38 N/A	00.00 N/A
Re	4.01 Ohm	3.26 Ohm	0.00 Ohm
Le	4.2 mH	1.8 mH	0.0 mH
Qms	8.56	5.59	8.00
Qes	0.39	0.31	0.00
Qts	0.38	0.30	0.00
Xmax	34mm	34mm	34mm
Ref SPL @1 watt	82.8 db	89.4db	N/A db
Suggest Sealed Box	N/A ft³	N/A ft³	N/A ft³
Suggested Ported Box	1.5 ft³	3.25 ft³	5.5 ft³

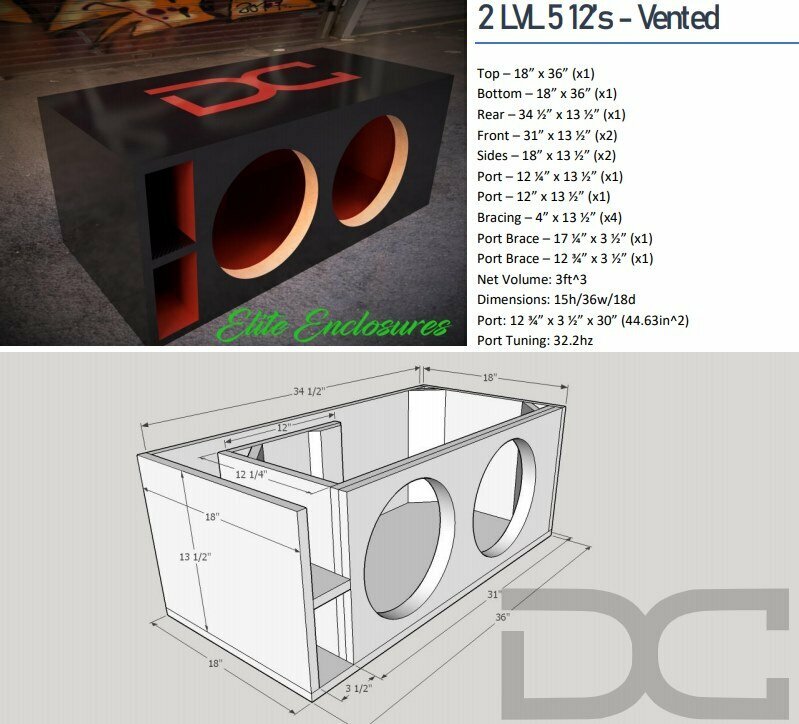

FREE BOX DESIGN BELOW
