Subwoofer Description

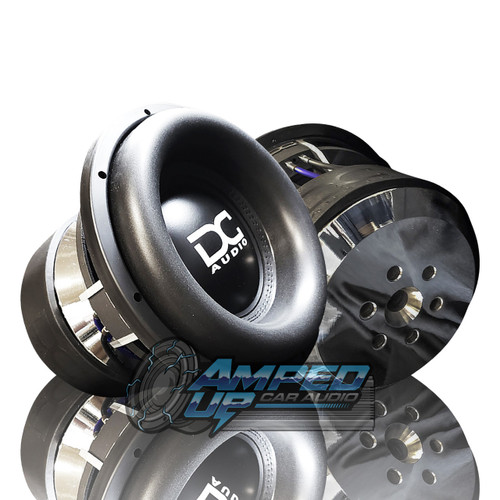

Here it is, the m5 Elite version of the Lv5 subwoofer. Built for ground pounding and taking abuse in or out of the competition lanes.
When we went to the drawing board with this one we were looking to make improvements in cooling, motor force and soft parts.
The end result is a sub that works great in the SPL lanes as well as Pounding out the LOWS!!
To really step it up with this driver take a look at the Carbon Fiber options available for it.
Key Features
• Extremely strong kraft pulp fiber reinforced cone
• Wide Long Throw foam surround
• Dome propylene dust cover with White DC logo
• 10” OD Spaced Spiders
• Extra heavy duty sewn tinsel lead wire
• Cast DC Series aluminum black frame / no invert mount
• FEA analyzed and optimized motor assembly – Fully CNC machined
• Rubber mounting gasket
• 8 Awg OFC Direct Leads
• 3.5” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum former
• Rubber magnet cover
| M5 Level 5 Subwoofer |
12" |
15" |
18" |
| Mounting Depth |
10.5" |
11.75" |
12.75" |
| Mounting Hole Diameter |
11.15" |
14.25" |
16.9" |
| Outside Driver Diameter |
12.5" |
15.7" |
18.5" |
| VC Diameter |
3.5" |
3.5" |
3.5" |
| Displacement |
.19 ft³ |
.23 ft³ |
.26 ft³ |
| Power Handling RMS |
3500
watts |
3500
watts |
3500
watts |
| Power Handling PEAK |
7000
watts |
7000
watts |
7000
watts |
| Ohm Options |
d.7/d1/d2 |
d.7/d1/d2 |
d.7/d1/d2 |
| Sd |
494 cm² |
791 cm² |
1159 cm² |
| Vas |
18.19 L |
48.98 L |
N/A L |
| Cms |
0.06 Mm/n |
0.05 Mm/n |
0.06 Mm/n |
| Mms |
442.0 g |
487.2 g |
534.19 g |
| Fs |
30.59 Hz |
30.7 Hz |
29.85 Hz |
| Bl |
29.21 N/A |
31.38 N/A |
00.00 N/A |
| Re |
4.01 Ohm |
3.26 Ohm |
0.00 Ohm |
| Le |
4.2 mH |
1.8 mH |
0.0 mH |
| Qms |
8.56 |
5.59 |
8.00 |
| Qes |
0.39 |
0.31 |
0.00 |
| Qts |
0.38 |
0.30 |
0.00 |
| Xmax |
34mm |
34mm |
34mm |
| Ref SPL @1 watt |
82.8 db |
89.4db |
N/A db |
| Suggest Sealed Box |
N/A ft³ |
N/A ft³ |
N/A ft³ |
| Suggested Ported Box |
1.5 ft³ |
3.25 ft³ |
5.5 ft³ |
FREE BOX DESIGN BELOW
Click HERE for a FREE Dual Level 5 15" Ported Box Enclosure Design
