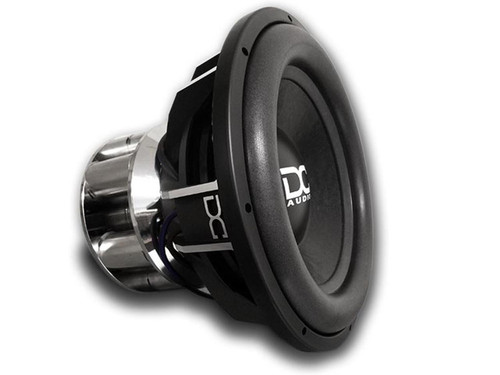

DC Audio Neo Elite 4.0 15" D0.7 Subwoofer | 4500 Watts RMS
Brand : DC Audio
- SKU:
- DC-Audio-Neo-Elite-4.0-15D0.7-Subwoofer
- Availability:
- Estimated build time is 7 - 10+ business days
DC Audio Neo Elite 4.0 15" D0.7 Subwoofer | 4500 Watts RMS of Ground-Pounding Power
Introducing the DC Audio Neo Elite 4.0 15" D0.7 Subwoofer, the ultimate choice for those who demand the best in car audio performance. Powered by a robust 4” coil and featuring a high-performance Neo magnet, this subwoofer is designed to deliver extreme power and precision. Whether you’re into SPL or need a subwoofer that can handle high-power ground-pounding applications, the Neo Elite 4.0 is built to crush lows and get loud with unparalleled clarity.
Key Features:
- Extremely Strong Kraft Pulp Fiber Reinforced Cone: Ensures durability and precise sound reproduction.
- Wide Long Throw Foam Surround: Provides maximum excursion for deep, resonant bass.
- Dome Polypropylene Dust Cover with White DC Logo: Adds protection while showcasing the DC Audio brand.
- 10” OD Spaced Spiders: Enhances stability and performance at high power levels.
- Extra Heavy Duty Sewn Tinsel Lead Wire: Increases durability under extreme conditions.
- Cast DC Series Aluminum Black Frame: Offers strength and rigidity, designed for non-inverted mounting.
- FEA Analyzed and Optimized Motor Assembly: Fully CNC machined for maximum efficiency and power handling.
- Rubber Mounting Gasket: Ensures a secure fit and reduces vibrations.
- 8 AWG OFC Direct Leads: Provides high-current power transfer for peak performance.
- 4.0” 8 Layer Hi-Temp Aluminum Voice Coil: Wound on a black anodized aluminum former for superior heat dissipation.
T/S Parameters:
- Mounting Depth: 12"
- Mounting Hole Diameter: 14.25"
- Outside Driver Diameter: 15.7"
- Displacement: 0.23 ft³
- Power Handling RMS: 4500 watts
- Power Handling Peak: 8000 watts
- Ohm Options: d.7/d1/d1.4/d2
- Sd: 791 cm²
- Vas: 67.10 L
- Cms: 0.03 mm/N
- Mms: 724.0 g
- Fs: 30.36 Hz
- Bl: 40.55 N/A
- Re: 3.9 Ohm
- Le: 4.7 mH
- Qms: 8.08
- Qes: 0.36
- Qts: 0.35
- Xmax: 34mm
- Ref SPL @1 watt: 88.8 dB
- Suggested Ported Box: 3.25 ft³
The DC Audio Neo Elite 4.0 15" D0.7 Subwoofer is a powerhouse, ready to elevate your car audio system with its unmatched power and precision. Whether you’re hitting the SPL lanes or cruising with deep, rich bass, this subwoofer is designed to deliver the ultimate audio experience.
