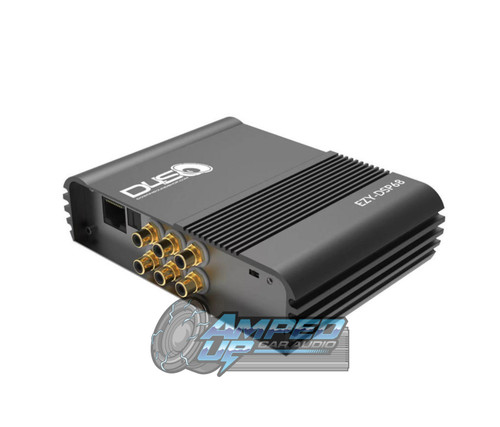

Down4Sound ESY DSP68 | 8CH Digital Signal Processor
Brand : Down4Sound
- SKU:
- D4S-EZY-DSP68
Introducing the Down4Sound ESY DSP68 | 8CH Digital Signal Processor, the ultimate all-in-one car audio DSP solution. Designed for Down4Sound enthusiasts, the EZY DSP68 offers unmatched control, customization, and audio clarity.
Key Features:
- Premium Audio Quality: 6CH low-level inputs (RCA 2.8Vrms) and 8CH low-level outputs (RCA 4.2Vrms) with Tiffany Gold connectors.
- Wireless Connectivity: Bluetooth 5.0 for HD audio streaming, plus optical fiber and coaxial options.
- Superior Signal-to-Noise Ratio: Ensure top-tier audio clarity with an impressive Signal-to-Noise Ratio (S/N) exceeding 100dB (RCA), minimizing background noise for crystal-clear sound.
- Advanced DSP Technology: 32-bit processing and 148 MHz clock speed for precise tuning.
- High Resolution: 31-segment, 48KHz/24Bit sampling rate for unmatched clarity.
- Superior Signal Conversion: Featuring high-quality signal conversion chips to ensure maximum signal integrity and crystal-clear audio performance.
- Low Distortion: THD+N less than 0.05% for pure sound.
- Wide Frequency Range: 20Hz to 20KHz for full-spectrum audio.
- Efficient and Dependable: The EZY DSP68 features ultra-low dark current (<3mA) and supports a wide voltage range (DC9V - 16V), ensuring reliable and efficient operation.
- Wide Operating Temperature Range: The EZY DSP68 is designed to perform reliably in extreme conditions, with an operational temperature range of -30°C to 70°C (-22°F to 158°F).
Technical Specifications:
- Dynamic Range (RCA Input): ≥100dB
- Signal-to-Noise Ratio (RCA Input): ≥102dB
- Total Harmonic Distortion (T.H.D.): ≤0.05%
- Frequency Response: 20Hz~20kHz
- Sampling Rate: 48kHz/24Bit
- RCA Input Impedance: 10kΩ
- RCA Output Impedance: 51Ω
- Max Signal Input/Output (RCA): 12Vpp
- Ambient Temperature: -30°C to 70°C
- Working Voltage: DC 9V~16V
- REM Input/Output: ACC start / +12V starting voltage output (0.2A)
- Standby Power: ≤0.1W
Enhanced Features:
The D4S EZ DSP Mobile App, available for Apple and Android, lets you easily customize your audio settings. Stay updated with visual indicators for clipping and Bluetooth connectivity. Advanced functionalities include a noise gate switch, limiter, minimum source attenuation, shutdown delay, and presets, ensuring your speaker components deliver optimal sound performance.
Upgrade your car audio with the Down4Sound ESY DSP68 and enjoy superior sound quality, precision tuning, and seamless wireless connectivity!
Bluetooth Compatibility Notice: For optimal performance, ensure your device supports the latest Bluetooth technology. Older versions, like Bluetooth 2.1, may not perform as well as Bluetooth 5.0. Check your device's Bluetooth version with the manufacturer to ensure seamless connectivity and top-tier audio streaming.
