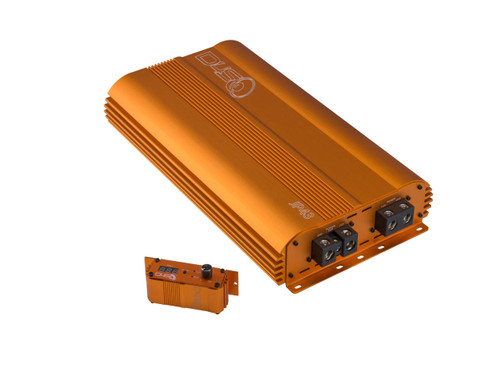

JP43 Orange Monoblock Amplifier by Down4Sound | 4300W RMS Power
Experience the epitome of powerful sound amplification with the JP43 Orange Monoblock Amplifier by Down4Sound. This amplifier stands as a titan in the realm of big bass and big power, delivering a robust 4300W RMS output that creates clean, clear, and thunderous bass. Designed for those who demand the best in audio performance, the JP43 ensures that every beat resonates with power and precision.
Key Highlights:
-
Power Ratings:
- 1-ohm RMS Power: 4300W
- 2-ohm RMS Power: 2300W
- 4-ohm RMS Power: 1300W
- Tested at 14.4V @ 1% THD
-
Enhanced Features:
- Equipped with 2 power and 2 ground inputs, accommodating up to 0 gauge wire
- Superior Tiffany RCAs for enhanced connectivity
- Continuous internal fan operation for optimal cooling
-
Essential Requirements:
- Electrical Upgrade: A mandatory electrical upgrade, including the BIG 3, upgraded alternator, and reserve battery(s), is required to maintain the warranty and ensure optimal performance.
-
Detailed Specifications:
- Power and Ground Inputs: 2 power and 2 ground terminals, supporting up to 0 gauge wire
- Speaker Output: Accepts up to 4 gauge wire
- Frequency Response: 14Hz – 260Hz
- Signal to Noise Ratio: 89dB
- Damping Factor: 400 <
- Efficiency at 4 ohm: 94%
- Input Sensitivity: 6V – 0.2V
-
Filters and Phase Control:
- Subsonic Filter: 10Hz – 50Hz
- Low Pass Filter: 35Hz – 250Hz
- Phase Adjustment: 0 – 180 degrees
-
Fusing and Dimensions:
- Fusing: 400A TOTAL | 200A each positive input (x2)
- Dimensions: 15.75" L x 9.37" W x 2.64" H
- Origin: MADE IN SOUTH KOREA
-
Advanced Control:
- Patent Pending BT Remote Control: Equipped with voltage and temperature display, and a clipping indicator
- Power Requirements for Remote: C type power connection required; external battery pack or USB power necessary as the unit does not have rechargeable batteries
- Strappable: The amplifier is linkable, allowing you to harness double the power with another JP43 amplifier
Elevate your car audio system with the JP43 Orange Monoblock Amplifier by Down4Sound. Finished in striking Orange, this amplifier combines power, precision, and advanced features to deliver a bass experience that is both formidable and refined.
