Down4Sound MM1004 (Mini Maxx) Red Amplifier

Description
Warranty Information

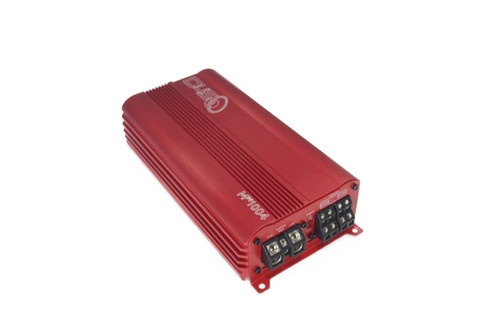

Down4Sound MM1004 (Mini Maxx) Red Amplifier | 700 Watts RMS 4-Channel Compact Power

Unleash the full potential of your music with the Down4Sound MM1004 (Mini Maxx) Red Amplifier. This compact 4-channel amplifier is designed to deliver powerful, high-quality sound in a space-saving design. With band-passable crossovers (X1 & X10), the MM1004 allows you to run mids and highs on one channel and bass on another, or bi-amplify the 4 channels differently for a fully customizable listening experience. Ideal for car audio enthusiasts who demand flexibility and performance, this amplifier is the perfect addition to any vehicle’s sound system.

Technical Specifications:

4 Ohm RMS Power: 100W x 4 channels
2 Ohm RMS Power: 150W x 4 channels
4 Ohm RMS Bridged Power: 300W - 350W x 2 channels (Tested at 14.4V & 1% THD)
Frequency Response: 10Hz – 23.8KHz
Signal to Noise Ratio: 93dB
Damping Factor: 100
Input Sensitivity: 6V – 0.2V

CH1/2 High Pass Filter:

20Hz – 800Hz
High Pass Multiply: x1, x10 (200Hz – 8KHz)

CH1/2 Low Pass Filter:

50Hz – 800Hz
Low Pass Multiply: x1, x10 (500Hz – 8KHz)

CH3/4 High Pass Filter:

20Hz – 800Hz
High Pass Multiply: x1, x10 (200Hz – 8KHz)

CH3/4 Low Pass Filter:

50Hz – 800Hz
Low Pass Multiply: x1, x10 (500Hz – 8KHz)
Bandpass Capable: Allows for precise frequency control for a customized audio experience.
Clipping Indicator: Alerts you when the amplifier reaches its maximum output without distortion.
Working Voltage: 9 to 15.5 Volts
4 GA Power & Ground Terminals: Ensures stable power delivery for optimal performance.
14GA Speaker Wire Terminal: Supports high-quality speaker connections.

Dimensions:

Length: 220mm (8.66 inches)
Width: 123.9mm (4.87 inches)
Height: 54.3mm (2.13 inches)

Elevate your car audio experience with the Down4Sound MM1004 (Mini Maxx) Red Amplifier. With its compact design, powerful output, and advanced features, this amplifier is the ideal solution for those who seek both performance and versatility in their audio setup.
