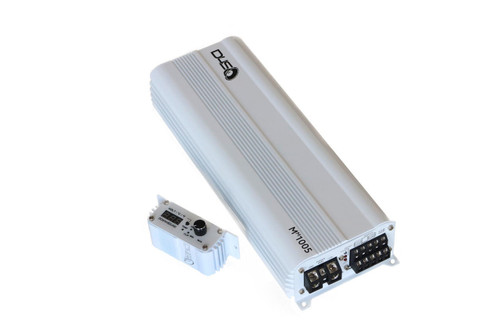

Down4Sound MM1005 (Mini Maxx) Gloss White Amplifier

Description
Warranty Information

Get ready to elevate your car audio system with the Down4Sound MM1005 (Mini Maxx) Gloss White Amplifier, a powerhouse 5-channel amplifier that delivers an impressive 1100 Watts RMS. Designed for those who demand exceptional sound quality and performance, this full-range digital amplifier is the ultimate solution for enhancing your audio experience.

The MM1005 (Mini Maxx) is engineered with versatility in mind, featuring stable performance into 2ohm stereo or 4ohm bridged configurations for Channels 1-4, and 1ohm mono stability for Channel 5. Equipped with a high-speed MOSFET power supply, variable high pass and low pass filters, and a band pass filter capability for Channels 3 and 4, this amplifier offers precise sound customization to suit your unique preferences.

Key Features:

Full Range & Digital 5-Channel Amplifier
CH1-CH4 stable into 2ohm stereo or 4ohm bridged
CH5 stable into 1ohm mono for powerful bass output
High-speed MOSFET power supply for consistent power delivery
Variable High Pass Filter and Low Pass Filter with x10 multiplier for CH3 & CH4
Band Pass Filter capable for CH3 & CH4 for advanced sound control
Variable Subsonic Filter for CH5 to fine-tune low-frequency response
4-Way Protection Circuits: Thermal, High & Low Voltage, Speaker Temperature Display, Short, and DC
Remote Bass Knob with Voltmeter & Temperature Display for on-the-fly adjustments
High Purity Copper Printed Circuit Board for superior conductivity
4 Gauge Power / Ground Terminals for efficient power flow

Specifications:

RMS Power, 1ohm (CH5): 500W x 1
RMS Power, 2ohm: 120W x 4 + 400W x 1
RMS Power, 4ohm: 80W x 4 + 250W x 1
RMS Power, 4ohm Bridged: 260W x 2 + 250W x 1
Frequency Response: 10Hz - 23KHz (CH1 - CH4), 11Hz - 260Hz (CH5)
High Pass Filter (CH1 & CH2): 20Hz - 5KHz
High Pass Filter (CH3 & CH4): 20(200)Hz - 800(8K)Hz, MULTIPLY X10
Low Pass Filter (CH3 & CH4): 50(500)Hz - 800(8K)Hz, MULTIPLY X10
Band Pass Filter: Yes
Subsonic Filter (CH5): 10Hz - 50Hz
Low Pass Filter (CH5): 35Hz - 250Hz
Remote Bass Knob: Voltmeter & Temperature Display included
Input Sensitivity: 6V - 0.2V
Signal to Noise Ratio: > 92dB
Total Harmonic Distortion (T.H.D @ 4ohm): Less than 0.1%
Fuse Rating: 80A

Dimensions:

Length: 12.20 inches
Width: 4.87 inches
Height: 2.13 inches

Power up your car audio system with the Down4Sound MM1005 (Mini Maxx) Gloss White Amplifier and experience a new level of sound quality and performance. Whether you're looking to drive your mids, highs, or subs, this amplifier delivers the precision and power you need to take your audio setup to the next level.

Warranty Information Your new Down4Sound product is covered by 1 limited warranty if purchased from Down4Sound or an authorized Down4Sound dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Down4Sound. Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier. All warranty returns must be accompanied by the original sales invoice or receipt. You must contact us to request an RMA number prior to sending any returns via the RMA request form on our website. You are responsible for the cost of shipping your product back to us for warranty examination. If your product is covered under warranty, shipping back to you will be at no charge to you – if your product is replaced/repaired outside of warranty you must pay for return shipping and repair bill prior returning of the product or if no defect is found you are required to pay for return shipping only. At the sole discretion of Down4Sound your product will be either repaired or replaced when it is being covered under warranty. In the event of shipping damage due to improper packaging on products being returned to Down4Sound the customer is liable for the cost of all damages, necessary repairs, or replacement. Be sure to properly pack your return! * Extended additional warranty purchased on amplifiers take in affect from the date of purchase and must also be stated on orginal sales invoice or receipt. Refund/Return Policy: https://www.down4soundshop.com/shipping-returns/
