Down4Sound MM504 (Mini Maxx) Green Amplifier | 300 Watts RMS 4CH

Brand :

(No reviews yet) Write a Review
$114.99 - $134.98
SKU:
MM504-GR

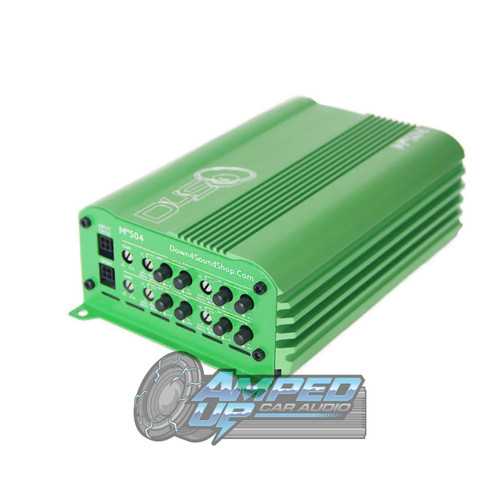

Introducing the Down4Sound MM504 (Mini Maxx) Green Amplifier—a compact yet powerful 300 Watts RMS 4-Channel car audio amplifier designed for those who demand exceptional sound quality in a small package. This sleek and efficient amplifier is the perfect choice for car audio enthusiasts who want to maximize performance without compromising on space.

The MM504 (Mini Maxx) is a Full Range Class D 4-Channel amplifier, engineered to deliver high-quality sound with stable performance into 2ohm stereo or 4ohm bridged configurations. Its high-speed MOSFET power supply ensures reliable and consistent power delivery, making it an excellent choice for a wide range of audio setups. With variable high pass and low pass filters, as well as a crossover multiply x10 feature, this amplifier offers extensive customization options to fine-tune your audio experience.

Key Features:

  • Full Range Class D 4-Channel Amplifier for high-quality sound in a compact design
  • Stable performance in 2ohm stereo or 4ohm bridged configurations
  • High-speed MOSFET power supply for reliable power delivery
  • Variable high pass and low pass filters for precise sound customization
  • Crossover multiply x10 feature for a wide range of audio tuning options
  • 4-Way Protection Circuits: Thermal, High & Low Voltage, Speaker Short, and DC

Technical Specifications:

  • Rated Power Output:
    • RMS Power, 2ohm: 50W x 4
    • RMS Power, 4ohms: 80W x 4
    • RMS Power, 4ohms Bridged: 160W x 2
  • Frequency Response: 10Hz - 23.7KHz
  • High Pass Filter: 20Hz - 800Hz
  • High Pass Filter Multiply: x1, x10 (200Hz - 8KHz)
  • Low Pass Filter: 50Hz - 800Hz
  • Low Pass Filter Multiply: x1, x10 (500Hz - 8KHz)
  • Input Sensitivity: 6V - 0.2V
  • Signal to Noise Ratio: > 88dB
  • Total Harmonic Distortion: < 0.1%
  • Working Voltage: 9V - 15.5V
  • Fuse Rating: 25A

Dimensions:

  • Length: 6.69 inches
  • Width: 4.87 inches
  • Height: 2.13 inches

The Down4Sound MM504 (Mini Maxx) Green Amplifier is a testament to innovation and continuous improvement in car audio technology. Designed for those who seek both power and clarity, this compact amplifier will elevate your car audio system to new heights. Experience the precision, versatility, and reliability of the MM504 and take your sound to the next level.

Warranty Information Your new Down4Sound product is covered by 1 limited warranty if purchased from Down4Sound or an authorized Down4Sound dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Down4Sound. Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier. All warranty returns must be accompanied by the original sales invoice or receipt. You must contact us to request an RMA number prior to sending any returns via the RMA request form on our website. You are responsible for the cost of shipping your product back to us for warranty examination. If your product is covered under warranty, shipping back to you will be at no charge to you – if your product is replaced/repaired outside of warranty you must pay for return shipping and repair bill prior returning of the product or if no defect is found you are required to pay for return shipping only. At the sole discretion of Down4Sound your product will be either repaired or replaced when it is being covered under warranty. In the event of shipping damage due to improper packaging on products being returned to Down4Sound the customer is liable for the cost of all damages, necessary repairs, or replacement. Be sure to properly pack your return! * Extended additional warranty purchased on amplifiers take in affect from the date of purchase and must also be stated on orginal sales invoice or receipt. Refund/Return Policy: https://www.down4soundshop.com/shipping-returns/
