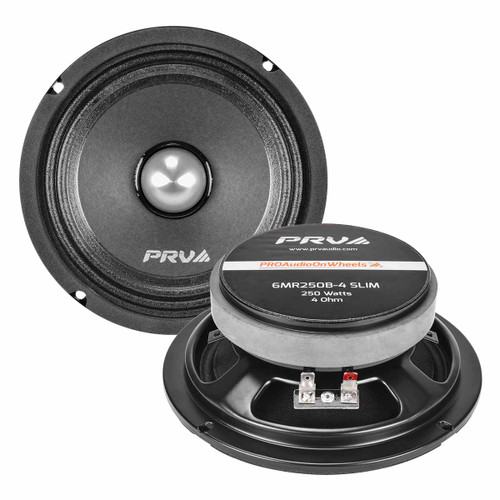

PRV Audio 6MR250B-4 SLIM 6.5" inch 4 Ohm (MR Series) Midrange Bullet Car Speaker 250 Watts RMS (Single)

The MR SLIM series, designed as a PRO Audio On Wheels solution for shallow doors, features an Aluminum Phase Plug (Bullet). This midrange speaker is built like a professional loudspeaker but tailored for the mobile audio market, earning the name Pro Audio On Wheels®!

By blending elements of PRO Audio and Car Audio, we've developed a highly efficient midrange speaker that delivers high output levels from your car's stock speaker locations.

**Slim Design:** Ideal for stock door locations

**Superior Sound Quality:** No need to cut interior panels

**High Endurance:** Handles the loudest volumes

**Efficient Heat Dissipation:** Vented air pole piece

**Even Sound Distribution:** Center phase plug

**Impedance:** 4 Ohms

**Available Sizes:** Also available in 8″ - 8MR400B-4 SLIM

The "bullet" phase plug is crafted from pure aluminum, serving as a radiator cooling system for the voice coil and precision-machined for even sound dissipation. Besides its attractive design, this extremely light cone offers excellent damping, ensuring a natural yet accurate sound.

It also features a cloth M-roll surround, which helps control resonance, making it easy to transition to a super tweeter.

The suspension design of this midrange includes a single-layer spider connected to the coil former with premium stitched lead wires. It is driven by a copper-clad aluminum wire voice coil, offering high efficiency and excellent power handling.

This results in an outstanding sound stage quality and realistic sound reproduction, providing great value.

Built for compact spaces and capable of handling 250 watts of continuous power, its slim design makes it the perfect car audio door speaker for versatile applications.

With a mounting depth of just 2.14 inches, it delivers loud and clear vocals without compromising on quality and performance.

GENERAL SPECIFICATIONS

- *Nominal Power Handling:* Defined as the maximum RMS power the speaker can handle over a 2-hour test with pink noise featuring a 6dB crest factor and a bandpass filter with 12dB/oct tuned to its usable frequency range.

- **Continuous Program Power (RMS):** The maximum power the speaker can handle during a regular musical program using our recommended filters. This rating helps define the optimal amplifier power to provide a clean signal without clipping or saturation.

- ***Max Peak Power:** The highest power level the speaker can handle for brief moments, typically during music peaks. Sustaining this power for longer periods will damage the speaker.

THIELE-SMALL PARAMETERS

***Xmax = (Voice coil winding depth - Magnetic Gap depth) / 2 + Magnetic Gap Depth / 4

EXTRA INFO

PRV AUDIO 6MR250B-4 SLIM DATASHEET
