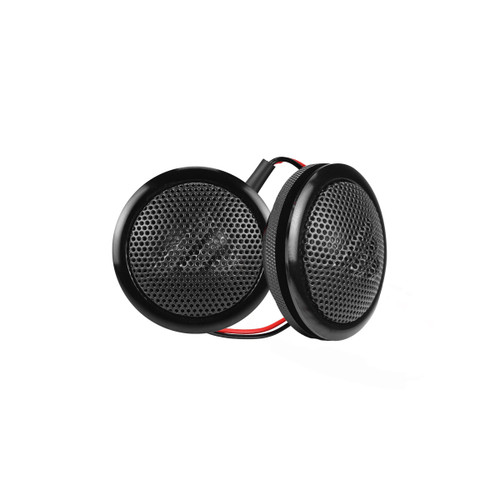

PRV Audio TW150SD-4 2" inch 4 Ohm (TW Series) Soft Dome Tweeter Car Speaker 120 Watts RMS (Pair)

Brand :

(No reviews yet) Write a Review
MSRP: $67.99
$49.91
(You save $18.08 )
SKU:
PRVAudio-TW150SD-4

The new TW150SD-4 is set to revolutionize the silk dome tweeter market with its innovative design. Featuring a large 32mm dome and a 1.1” voice coil, it can handle up to 120 Watts, delivering remarkable clarity and exceptional response above 2kHz.

With an overall diameter of 2.37” and a cutout mounting hole of 1.93”, these 4 Ohm tweeters are an excellent drop-in upgrade for vehicles with standard 2” factory tweeters. They can also easily enhance your sound system with minimal modification, thanks to the convenient flush-mount screw-on ring.



- 32mm dome with 1.1" voice coil – 4 Ohm
- High-strength neodymium magnet in a compact machined housing
- Non-fatigue cloth diaphragm for extended frequency response
- Ultra-high sensitivity of 94dB for powerful output



These tweeters are the top choice for high-end car audio and motorcycle systems. Their shallow profile allows for easy installation in tight spaces.

Equipped with high-strength neodymium magnets, they deliver high efficiency while maintaining a compact size.



These neodymium tweeters are designed to match the performance of high-efficiency loudspeakers, offering premium sound output that integrates seamlessly with your system. The built-in inline capacitor filters out low frequencies, ensuring clean, detailed high-frequency reproduction.



GENERAL SPECIFICATIONS

Nominal impedance 4 Ohm
Nominal Power Handling* 60 Watts
Continuous Program Power(RMS)** 120 Watts
Max Peak Power*** 240 Watts
Sensitivity 2.00V at 1m 94 dB
Recommended Hi Pass Crossover
For Full Power Handling
3500 Hz
12db/oct Crossover
Frequency Response at -10dB 2,000 – 20,000 Hz
Voice Coil Diameter 1.1” (28 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Silk
Magnet Material Neodymium





*Nominal power handling refers to the maximum RMS power the speaker can endure during a 2-hour test with pink noise and a 6dB crest factor, using a bandpass filter with a 12dB/oct slope within its usable frequency range.

**Continuous Program Power (RMS) is the maximum power the speaker can handle during regular musical programs when using our recommended filters. This rating helps determine the optimal amplifier power needed to deliver a clean, unclipped signal.

***Max Peak Power is the highest power level the speaker can handle briefly, typically encountered during musical peaks. Prolonged exposure to this power level can damage the speaker.



EXTRA INFO

Overall Depth 1.03″ (26.2 mm)
Mounting Depth 0.67″ (17 mm)
Overall Diameter 2.37″ (60.2 mm)
Baffle Cutout Diameter 1.93″ (50 mm)
Net Weight (piece) 0.29 lbs (0.13 kg)
Shipping Weight (pair) 0.73 lbs (0.33 kg)
Carton Dimensions W x L x H 2.83″ x 6.18″ x 1.65″ (72 x 157 x 42 mm)
