FEATURES

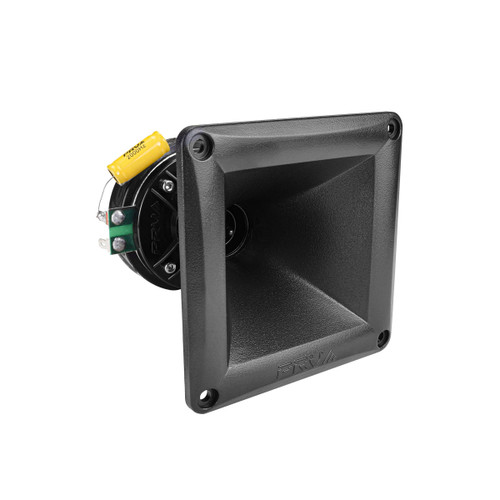

The WG175Ph horn driver combo is known for great high frequency performance, reliability, and power handling as replacement and upgrade for many guitar cabinets and car audio systems that use 4.55″ x 4.55″ horn.

• The 108 dB sensitivity allows the speaker to generate high output even with only 150 watts, providing fantastic high-frequency performance, even better value.
• The lightweight design of this horn driver makes it easy to install in car systems such as doors, stuntwalls and trunks lids.
• Water Resistant PRO Audio horn driver, able to handle 150 Watts Continuous Program Power (RMS) with music
• The horn design ensures a wide 45° x 45° dispersion pattern which is ideal for filling any size space with sound. Capacitor included. 8 Ohm Voice Coil.



The WG175Ph is a lightweight driver that weighs just 1.92 lbs, and yet offers outstanding response through 16kHz.

Its upper midrange and high response, translates into smooth, non-fatiguing output thanks to its built-in capacitor.

With only 4.32 of mounting depth, these horn tweeters are an excellent solution when you need wide dispersion of high frequency sounds.



GENERAL SPECIFICATIONS

Exit Throat Diameter	1” (25.4mm)
Nominal impedance	8 Ohms
Nominal Power Handling	75 Watts
Continuous Program Power (RMS)	150Watts
Peak Power	300 Watts
Sensitivity 2.83V at 1m	108 dB
Recommended Hi Pass Crossover** **For Full Power Handling	3000 Hz** **12db Per Octave Crossover
Frequency Response at -10dB	1,300 – 16,000 Hz
Voice Coil Diameter	1″ (25.4 mm)
Voice Coil Wire	CCAW
Voice Coil Former Material	Kapton
Diaphragm Material	Phenolic Resin
Flux Density	1.02 T
Magnet Material	Ferrite



*Nominal power handling refers to the maximum RMS power the speaker can endure during a 2-hour test with pink noise and a 6dB crest factor, using a bandpass filter with a 12dB/oct slope within its usable frequency range.

**Continuous Program Power (RMS) is the maximum power the speaker can handle during regular musical programs when using our recommended filters. This rating helps determine the optimal amplifier power needed to deliver a clean, unclipped signal.

***Max Peak Power is the highest power level the speaker can handle briefly, typically encountered during musical peaks. Prolonged exposure to this power level can damage the speaker.

EXTRA INFO

Overall Depth	4.61” (117.0 mm)
Mounting Depth	4.32” (109.7 mm)
Overall Width	4.55” (115.5 mm)
Overall Height	4.55” (115.5 mm)
Baffle Cutout WxH	3.50″ x 3.50″ (89.0 x 89.0 mm)
Net Weight	1.9 lbs (0.86 kg)
Shipping Weight	2.0 lbs (0.92 kg)
Carton Dimensions W x L x H	4.80” x 4.80” x 4.96” (122 x 122 x 126 mm)
