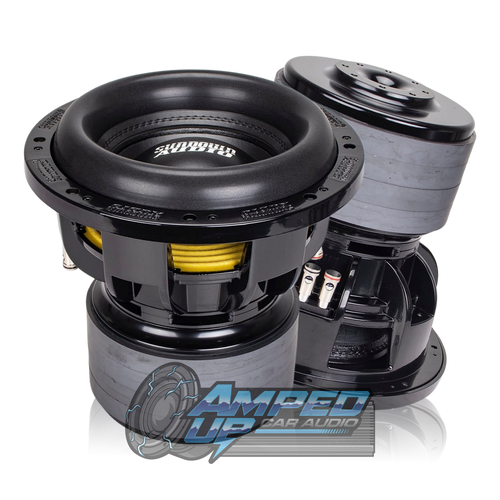

Sundown Audio M 10" D1 Subwoofer | 2000W RMS | 4000W Peak

Sundown Audio M 10" D1 Subwoofer | 2000W RMS | 4000W Peak

Don’t let its size fool you—the Sundown Audio M 10" D1 Subwoofer is a compact powerhouse built to deliver intense low-end output and extreme reliability. With an impressive 2000W RMS and 4000W peak power handling, this sub is designed for bass lovers who want hard-hitting performance without sacrificing space.

Built to the same extreme standards as the larger M Series models, the M 10” features a quad stack magnet structure, Mega Roll surround, and a reinforced frame that supports up to 35mm of Xmax. It’s available in Dual 1 Ohm and Dual 2 Ohm configurations, giving you flexible wiring options for your system.

Serious Power in a Smaller Footprint

• Quad Magnet Stack delivers massive motor force

• Mega Roll Surround ensures clean, controlled excursion

• Etched All-Black Backplate enhances heat dissipation and adds stealthy style

• 35mm Xmax for extreme excursion and serious bass output

T/S Parameters M10D1

• RE (Ohms): 2.27

• Fs (Hz): 37.825

• VAS (L): 7.669

• Qes: 0.789

• Qms: 4.931

• Qts: 0.680

• Le (mH): 1.887

• BL (NA): 17.339

• Mms (Grams): 439.50

• Cms (uM/N): 40.281

• Sensitivity (dB @ 1w/1m): 78.95

• Xmax: 35mm

Enclosure Recommendations

• Sealed Enclosure: Not recommended

• Ported Enclosure Volume: 1.5 cu ft

• Tuning Frequency: 32 Hz

• Port Area: 24 sq in

• 4th Order Bandpass Sealed Side: 0.75 cu ft

• 4th Order Ported Side: 2.25 cu ft

• 4th Order Port Area: 45 sq in

• 4th Order Port Length: 8"

Physical Dimensions

• Mounting Depth: 10.09"

• Outside Diameter: 11.65"

• Cut-Out Diameter: 10.01"

• Displacement: 0.2 cu ft

Perfect for tight-space installs or compact enclosures, the Sundown Audio M 10" D1 Subwoofer offers the same high-performance DNA found across the M Series lineup. Get ready for loud, low, and reliable bass that hits way harder than its size suggests.
