Sundown Audio M 12" D2 Subwoofer | 2000W RMS | 4000W Peak

Brand : Sundown Audio

(No reviews yet) Write a Review
MSRP: $719.99
$599.99
(You save $120.00 )
SKU:
SundownAudio-M-12D2-Subwoofer

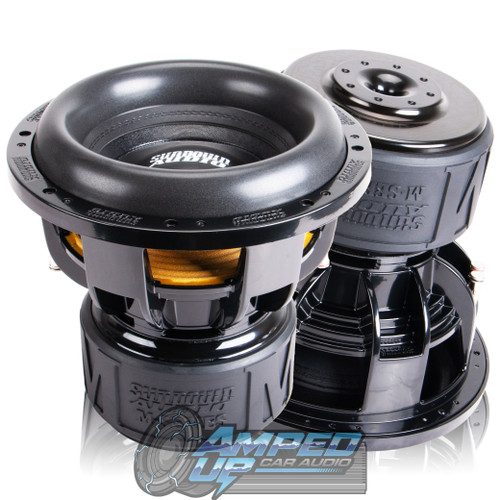

Sundown Audio M 12" D2 Subwoofer | 2000W RMS | 4000W Peak

Take your bass to the next level with the Sundown Audio M 12" D2 Subwoofer, engineered to deliver thunderous low-end performance and extreme durability. With a 2000W RMS and 4000W peak power rating, this sub is built for serious power and hard-hitting output. Perfect for daily drivers and SPL competitors alike, the M Series subwoofers are known for their elite performance and aggressive design.

Available in Dual 2 Ohm and Dual 1 Ohm configurations, this subwoofer gives you flexibility in system design while maintaining high output and reliability.

Premium Features for Maximum Performance

  • Quad Stack Magnet Structure for immense motor force

  • Mega Roll Surround & Reinforced Frame for maximum excursion and control

  • Etched All-Black Backplate for efficient cooling and sleek, stealthy aesthetics

  • 35mm Xmax for long travel, deep bass, and low distortion

T/S Parameters M12D2

  • RE (Ohms): 4.0669

  • Fs (Hz): 32.714

  • VAS (L): 15.06

  • Qes: 0.686

  • Qms: 4.768

  • Qts: 0.600

  • Le (mH): 3.641

  • BL (NA): 23.84

  • Mms (Grams): 466.63

  • Cms (uM/N): 50.725

  • Sensitivity (dB @ 1w/1m): 80.6

  • Xmax: 35mm

Enclosure Recommendations

  • Sealed Enclosure: Not recommended

  • Ported Enclosure Volume: 2.5 cu ft

  • Tuning Frequency: 32 Hz

  • Port Area: 40 sq in

  • 4th Order Bandpass Sealed Side: 1.0 cu ft

  • 4th Order Ported Side: 3.0 cu ft

  • 4th Order Port Area: 60 sq in

  • 4th Order Port Length: 8"

Physical Dimensions

  • Mounting Depth: 10.88"

  • Outside Diameter: 12.67"

  • Cut-Out Diameter: 11.09"

  • Displacement: 0.21 cu ft

Built for bass enthusiasts who expect the best, the Sundown Audio M 12" D2 Subwoofer combines high power handling, precision engineering, and extreme output in a compact 12-inch package. Whether you're chasing numbers or just want to feel every note, the M Series delivers.
