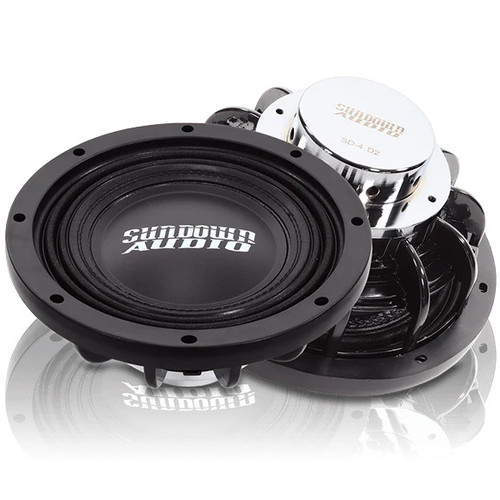

Sundown Audio SD-4 10" D4 Neo Shallow Mount Subwoofer | 600W RMS

The Sundown Audio SD-4 10" D4 Neo Shallow Mount Subwoofer is a powerhouse shallow-mount solution, designed for high-output sealed box applications with limited depth. As part of Sundown’s SD v.4 Neo Series, the SD-4 builds on the success of the SD-3, delivering 600 watts RMS power handling, improved cooling, and rugged durability — all while fitting into tight spaces. With a Dual 4 Ohm (D4) voice coil configuration, this subwoofer also provides wiring flexibility for a variety of amplifier setups.

Shallow Mount Design – Big Bass in Tight Spaces

Depth restrictions are no match for the SD-4 series. By removing the pole vent, Sundown designed the motor to sit flush against the back of the enclosure, eliminating wasted clearance. Paired with the newly tooled “W” foam surround, the SD-4 reduces the required front clearance, effectively cutting depth requirements by nearly 2 inches compared to most traditional shallow subs.

Advanced Motor & Cooling Technology

• Lightweight Neodymium Motor – Compact and powerful, reducing angled depth requirements compared to ferrite motors.

• Side-Firing Gap Venting & OD Pole Channels – Keeps air moving efficiently for optimal cooling.

• Aluminum Faraday Ring – Improves acoustic response and lowers distortion.

• Shorting Ring – Further smooths inductance for consistent, clean bass output.

Built for Sound Quality and Performance

The SD-4 features an under-hung motor design, keeping the 8-layer copper coil fully inside the magnetic gap. This maintains a flat BL curve for low distortion and superior accuracy. With 14.5mm linear excursion one-way, this subwoofer provides tight, punchy, and deep bass while being optimized for small sealed enclosures.

Durable Construction for Long Life

• RMS Power Handling: 600W RMS

• Voice Coil Configuration: Dual 4 Ohm (D4)

• Voice Coil: 2.5” high-temp copper coil on black aluminum former

• Surround: Computer-optimized foam “W” design

• Frame: Patented high-strength cast aluminum frame

• Durability: Spring-loaded terminals, stitched-on tinsel leads, and reinforced spider for reliability

Key Features at a Glance

• 600W RMS Power Handling

• Dual 4 Ohm Voice Coil (D4)

• 14.5mm Xmax one-way by 70% BL

• Neo motor design for compact installs

• Optimized for small sealed enclosures

• Rugged construction with spring-loaded terminals and stitched leads

Why Choose the Sundown SD-4 10" D4?

The Sundown Audio SD-4 10" D4 Neo Shallow Mount Subwoofer is engineered for those who demand serious bass performance in depth-limited installs. Its shallow design makes it a perfect fit for today’s vehicles, while the D4 configuration allows for more wiring flexibility, ensuring compatibility with a wide range of amplifiers.

Ideal for daily drivers, sound quality builds, or compact SPL setups, the SD-4 10" D4 combines Sundown’s legendary performance with the versatility of a shallow-mount subwoofer.
