Sundown Audio Xv3 10" D1 Subwoofer | 2500W RMS

Brand : Sundown Audio

(No reviews yet) Write a Review
MSRP: $850.99
$739.99
(You save $111.00 )
SKU:
Sundown-Audio-Xv3-10D1-Subwoofer

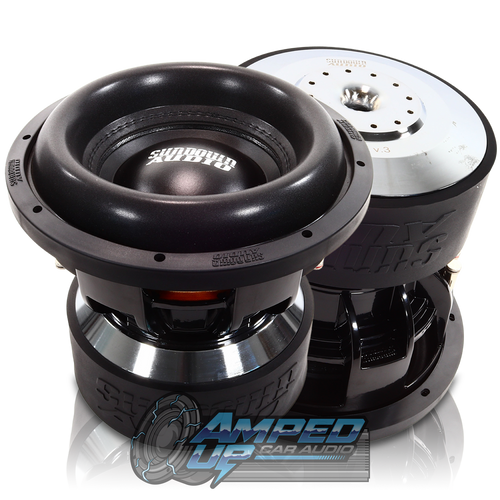

Sundown Audio Xv3 10" D1 Subwoofer | 2500W RMS – Compact Size, Explosive Bass Performance

The Sundown Audio Xv3 10" D1 Subwoofer is a compact powerhouse designed to deliver 2500W RMS and 5000W peak of thunderous, low-frequency bass. Perfect for tight-space installs, this subwoofer blends high-end engineering with relentless output, making it a top choice for serious car audio enthusiasts who need big sound in a smaller footprint.

Equipped with a triple-stacked magnet, 3” 4-layer copper voice coil, and hyper-extended pole piece, the Xv3 10" offers a staggering 4 inches of peak-to-peak excursion. Its larger 220mm motor structure, paired with the ultra-durable Mega-Roll v.2 surround, delivers deep, clean bass with low distortion—even under heavy load.

Optimized for small ported enclosures, this subwoofer also performs exceptionally well in larger boxes for increased low-end extension and output.


Key Features:

  • 2500W RMS / 5000W Peak Power Handling – Serious performance for daily or SPL setups

  • Dual 1 Ohm Voice Coil – Allows for flexible and efficient wiring configurations

  • 3” 4-Layer Copper Voice Coil – Built to handle heat and heavy power

  • Triple-Stacked Magnet Structure – Increases motor force and accuracy

  • Hyper-Extended Pole Piece – Supports extreme 4” excursion without bottoming out

  • 220mm Motor Design – Bigger, cooler, and stronger than previous versions

  • Mega-Roll v.2 Surround – Improved linear motion and rugged durability

  • Small Box Optimized – Designed for tight enclosures, but scales up easily for more output


Ideal For:

  • High-output car audio systems in tight spaces

  • Compact daily drivers or SPL builds

  • Small to medium ported subwoofer enclosures

  • Bass lovers seeking maximum output from a 10” sub


The Xv3 10" D1 redefines what a compact subwoofer can do. With extreme excursion, advanced cooling, and signature Sundown reliability, it's engineered to deliver ground-shaking bass without compromise.



Specifications

RE (Ohms) 1.4
FS (Hz) 39.104
VAS (L) 11.623
Qes 0.441
Qms 2.567
Qts 0.376
Le (mH)
BL (NA) 14.155
Mms (Grams) 256.970
Cms (uM/N) 64.465
Sens (dB @ 1w/1m) 83.8dB
Xmax 30mm
T/S SPECS X V.3 10″ D1

Enclosure Specifications

  X v.3 10
Sealed Enclosure N/A
Ported Enclosure 1.5 cu ft
Recommended Tuning 32hz
Recommended Port Area 24 sq in
Displacement 0.21 cu ft
Depth 9.4"
Outside Diam. 11.65"
Cutout 10.01"
Physical Dimensions Download


Sundown Audio Xv3 10" Dimensions
