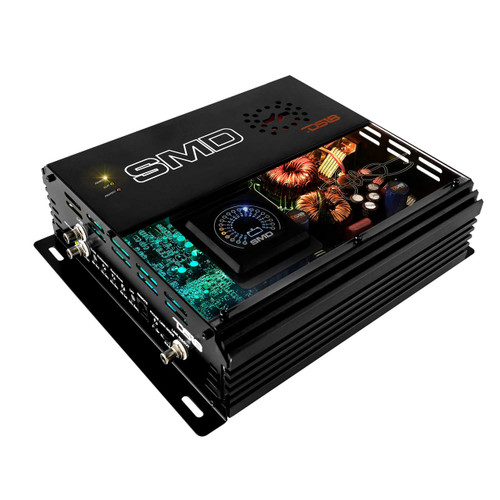

SMD SMD-2000.1D Monoblock Amplifier

Description

SMD SMD-2000.1D Amplifier Monoblock | 2000W RMS

Unleash powerful bass with the SMD-2000.1D Monoblock Amplifier, delivering 2000W RMS at 1-ohm with cutting-edge Class D technology. Designed by Steve Meade Designs and DS18, this amplifier combines premium Korean components with Sky High Car Audio’s OFC internal wiring for unmatched reliability and performance.

Key Features:

Exclusive SMD Design: Built-in VM-1 voltmeter for real-time power monitoring.
Advanced Cooling: Dual cooling fans and a clear half-top design for optimal heat dissipation.
Customizable Lighting: Digital RGB lights with an IR remote for personalized LED displays.
High-Quality Build: Professional Tiffany RCA terminals and robust 0 AWG power inputs.
Class D Efficiency: Powerful, clean sound with minimal distortion (<0.02% THD).

Technical Highlights:

RMS Output: 2000W @ 1-ohm, 1400W @ 2-ohm, 800W @ 4-ohm.
Filters: 24dB/octave subsonic and low-pass filters for precise sound tuning.
Protection: Advanced suite includes thermal, DC output, and short circuit safeguards.
Dimensions: Compact yet powerful at 10.63” W x 5.12” H x 12.59” L.

This amplifier ensures efficient performance, making it ideal for audiophiles and competitive setups. Elevate your car audio experience with the SMD-2000.1D Monoblock Amplifier, combining sleek design, precision engineering, and raw power!

Manual - Technical Data

Exclusive SMD design with VM-1 voltmeter

Front acrylic window and digital RGB lighting

IR remote control for LED patterns and colors

Professional Tiffany
RCA terminals

Dual cooling fans <br> For Enhanced Performance

Dual cooling fans
For Enhanced Performance

Korean components <br> OFC Internal Wiring

Korean components
OFC Internal Wiring

SPECS	AUDIO	FEATURES	MEASUREMENT
SKU SMD-2000.1D RMS Power @ 4 ohm (14.4v) 800W RMS Power @ 2 ohm (14.4v) 1400W RMS Power @ 1 ohm (14.4v) 2000W	Frequency Response 15Hz-250Hz Signal to Noise Ratio >98dB Efficiency @ 4ohm >86% Damping Factor 300 Input Impedance 22K ohm Total Harmonic Distortion (THD) <0.02% Low Level Input Range 200mV-6V High Level Input NO Selectable X-Over Fixed LPF X-Over Filter Range 35Hz-250Hz Bass Boost Range 0~9dB Bass Boost Frequency 30Hz-60Hz Infrasonic Filter 10Hz-30Hz Phase Selector 0~180	Amplifier Class Digital Amplifier Type Subwoofer Number of Channels 1 Minimum Impedance 1 ohm Led Indicator Power / Protection / Clip Power Input Terminal Size 0 AWG Recommended Fuse Size (Not Included) 200A Cooling Fan Yes Thermal Protection Yes Over-Load Protection Yes DC Output Protection Yes Short Circuit Output Protection Yes Voltage Input Protection Yes Clipping Protection Yes Body Color / Finish Black Metal Adjustment Knobs with Click Position Yes Professional Tiffany RCA Connectors Yes Remote Level Knob with Clip indicator Yes (Metal Case) Linkable (Strap mode) Amplifier Yes Reliable Heavy Duty Korean Board Design Yes Very High Efficiency Digital Circuit Design Yes Exclusive SMD design with VM-1 Voltmeter Yes Front Acrylic Window and Digital RGB Lighting Yes IR Remote Control for LED patterns and colors Yes	Overall Length 11.1" / 282mm Overall Width 9.15" / 232mm Overall Height 3" / 76mm Heatsink Length 9.4" / 240mm Gross Single Unit Weight 9Lb / 4.08kg

* Manuals and/or specifications are subject to change without prior notice.
