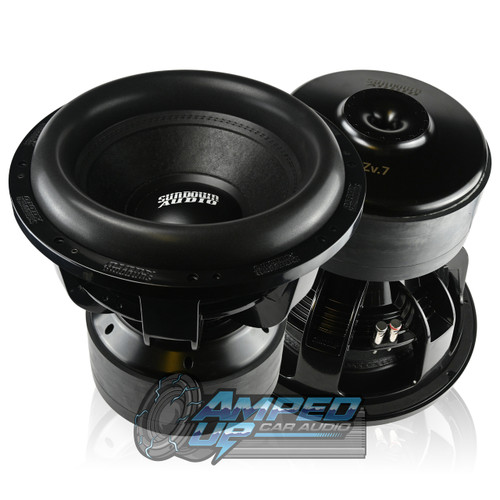

Sundown Audio Zv7 18" D1 Subwoofer

The Sundown Audio Zv7 18" D1 Subwoofer is built for extreme low frequency output, massive excursion, and brutal power handling. As the newest evolution in Sundown Audio’s legendary ultra high excursion lineup, the Zv7 18 delivers more motor force, greater linearity, improved cooling, and deeper bass performance than ever before.

Positioned above the Xv4 and M Series in Sundown’s 2025 lineup, the Zv7 series was engineered from the ground up for serious bass enthusiasts who demand world class low frequency extension in compact ported enclosures. Featuring Sundown’s patented mega platform frame design and the largest motor ever used on a Z series subwoofer, the Zv7 18 D1 is capable of delivering crushing bass with incredibly low distortion.

At the heart of the Zv7 18 is a massive quad stacked 265mm motor structure paired with a hyper extended pole and extreme mechanical clearances. This allows over 4 inches peak to peak travel before bottoming, creating a nearly bottomless suspension feel during heavy excursion.

The Sundown Audio Zv7 18 also features a 3.3 inch 4 layer round wire aluminum voice coil wound with Sundown’s proprietary fat wire winding method. This advanced coil design dramatically improves thermal handling and durability under extreme power levels.

Cooling performance has also been heavily upgraded with a patent pending airflow directing pole cap, six pole channels, sixteen gap vents, and a cross drilled top plate system that keeps temperatures under control during aggressive demos and competition use.

For audiophiles and SPL competitors alike, the Zv7’s advanced Faraday ring and inductance sleeve design help maintain outstanding linearity and low distortion throughout the woofer’s entire excursion range. With a massive 42mm one way Xmax, the Zv7 18 is designed to produce devastating low bass while maintaining impressive sound quality.

Whether you are building a high output daily system or a competition level wall build, the Sundown Audio Zv7 18 D1 is designed to dominate the low frequency spectrum.

Features

• 3500 Watts RMS power handling
• 7000 Watts peak power
• Dual 1 Ohm configuration
• Patented Sundown mega platform frame
• Quad stacked 265mm motor structure
• Massive 10.8 inch motor diameter
• 3.3 inch 4 layer aluminum voice coil
• Proprietary fat wire coil winding
• Hyper extended pole design
• 42mm one way Xmax
• Over 4 inches peak to peak mechanical travel
• Advanced cooling and airflow system
• 9mm thick Faraday ring
• Extremely low distortion performance
• Optimized for low tuned ported enclosures
• Designed for ultra low frequency bass reproduction

Physical Dimensions: Download

Sundown Audio Zv7 18 D1 Specifications

Recommended Box Specifications

Ported Enclosure

• Recommended Box Size: 7.0 cu ft
• Recommended Port Area: 100 sq in

Sealed Enclosure

• Not Recommended

4th Order Bandpass

• Sealed Side: 3.0 cu ft
• Ported Side: 9.0 cu ft
• Port Area: 180 sq in
• Port Length: 8 inches

Why Buy the Sundown Audio Zv7 18?

The Sundown Audio Zv7 18 D1 was engineered for people who want extreme low bass, insane excursion capability, and serious reliability under abuse. Its advanced motor technology, enormous suspension travel, and highly optimized cooling system make it one of the most capable ultra low frequency subwoofers in the world today.

If you want a subwoofer that can handle massive power, dominate low notes, and stay linear while doing it, the Zv7 18 is built for you.

Frequently Asked Questions

How much power can the Sundown Audio Zv7 18 handle?

The Sundown Audio Zv7 18 D1 is rated for 3500 watts RMS and 7000 watts peak power.

What enclosure works best for the Sundown Zv7 18?

A large low tuned ported enclosure around 7 cubic feet with approximately 100 square inches of port area is recommended for the best low frequency performance.

Is the Sundown Zv7 18 good for SPL?

Yes. The Zv7 series is designed for extreme excursion, massive output capability, and high power handling, making it excellent for SPL and musical low bass applications.

Does the Sundown Audio Zv7 18 work in a sealed box?

Sundown Audio does not recommend a sealed enclosure for the Zv7 18.

What makes the Zv7 different from previous Z series models?

The Zv7 features a significantly larger motor, improved cooling system, higher motor force, more linear inductance performance, and a massive 42mm Xmax for deeper and cleaner bass reproduction.
