Sundown Audio Zv7 15" D1 Subwoofer | 3500W RMS

Brand : Sundown Audio

(No reviews yet) Write a Review
MSRP: $1,754.99
$1,367.99
(You save $387.00 )
SKU:
Sundown-Audio-Zv7-15D1-Subwoofer
Availability:
Built to order 8 - 10 Weeks

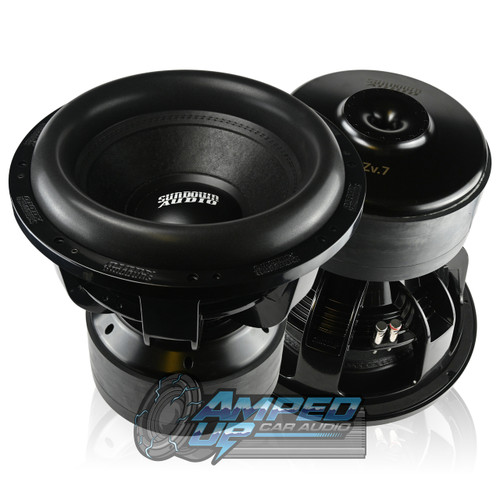

Sundown Audio Zv7 15" D1 Subwoofer

The Sundown Audio Zv7 15" D1 Subwoofer is engineered for extreme low frequency performance, brutal excursion capability, and unmatched output in compact ported enclosures. As part of Sundown Audio’s legendary ultra high excursion lineup, the Zv7 15 D1 delivers more motor force, greater linearity, and improved cooling than any previous Z series subwoofer before it.

Positioned above the Xv4 and M Series in Sundown Audio’s 2025 lineup, the Zv7 series was designed from the ground up for bass enthusiasts who demand devastating low bass response without sacrificing sound quality or reliability. Featuring Sundown’s patented mega platform frame and a massive quad stacked motor structure, the Zv7 15 D1 is built to handle extreme power and abuse while maintaining exceptional control and low distortion.

At the core of the Zv7 15 is Sundown Audio’s largest Z series motor ever produced. The massive quad stacked 265mm motor structure features a hyper extended pole design and extreme mechanical clearances, allowing over 4 inches peak to peak mechanical travel before bottoming. This creates an incredibly smooth suspension feel while enabling extreme excursion during heavy bass notes.

The Zv7 15 D1 also utilizes a huge 3.3 inch 4 layer round wire aluminum voice coil wound with Sundown’s proprietary fat wire winding technology. This advanced voice coil design dramatically improves thermal handling, efficiency, and durability under massive power levels.

Cooling performance has also been significantly upgraded with a patent pending airflow directing pole cap, six pole vent channels, sixteen gap vents, and a cross drilled slotted top plate system that keeps the voice coil cool during aggressive demos and competition level use.

To improve linearity and reduce distortion, Sundown added a massive 9mm thick Faraday ring and a new pole extension inductance sleeve. Combined with extensive FEA optimized motor engineering, the Zv7 achieves an incredible 42mm one way Xmax with outstanding control throughout the entire excursion range.

Designed specifically for low tuned ported enclosures, the Sundown Audio Zv7 15 D1 produces violent low frequency bass while maintaining exceptional sound quality and ultra low distortion.

Features

  • 3500 Watts RMS power handling
  • 7000 Watts peak power
  • Dual 1 Ohm voice coil configuration
  • Patented Sundown mega platform frame
  • Quad stacked 265mm motor structure
  • Massive 10.8 inch motor diameter
  • 3.3 inch 4 layer aluminum voice coil
  • Proprietary fat wire winding technology
  • Hyper extended pole design
  • Over 4 inches peak to peak mechanical travel
  • 42mm one way Xmax
  • Advanced multi stage cooling system
  • Sixteen gap vents for maximum airflow
  • Large 9mm Faraday ring
  • Extremely low distortion performance
  • Designed for small low tuned ported enclosures
  • Engineered for extreme low bass extension

Physical Dimensions: Download

Sundown Audio Zv7 15 D1 Specifications

Specification Value
RMS Power 3500 Watts
Peak Power 7000 Watts
Voice Coil Configuration Dual 1 Ohm
Re 1.96 Ohms
Fs 30.824 Hz
Vas 33.273 L
Qes 0.412
Qms 5.919
Qts 0.385
Le 1.829 mH
BL 23.647 NA
Mms 606.05 g
Sensitivity 91.582 dB
Xmax 42mm
Mounting Depth 13.94 Inches
Cutout Diameter 13.93 Inches
Motor Diameter 10.8 Inches
Displacement 0.29 cu ft

Recommended Enclosure Specifications

Ported Box

  • Recommended Box Size: 4.0 cu ft
  • Recommended Port Area: 60 sq in
  • Recommended Port Tuning: 32Hz

Sealed Box

  • Not Recommended

4th Order Bandpass

  • Sealed Side: 2.0 cu ft
  • Ported Side: 6.0 cu ft
  • Port Area: 120 sq in
  • Port Length: 8 inches

Why Buy the Sundown Audio Zv7 15 D1?

The Sundown Audio Zv7 15 D1 is built for bassheads who want insane excursion capability, massive output, and deep low frequency extension in a compact enclosure. With its enormous motor structure, highly advanced cooling system, and extremely linear suspension, the Zv7 15 delivers devastating bass response while maintaining impressive sound quality and control.

Whether you are building a high output daily system, demo setup, or competition vehicle, the Zv7 15 D1 is designed to handle extreme power and produce violent low bass with ease.

Frequently Asked Questions

How much power can the Sundown Audio Zv7 15 D1 handle?

The Sundown Audio Zv7 15 D1 is rated for 3500 watts RMS and 7000 watts peak power.

What enclosure works best for the Sundown Zv7 15 D1?

A low tuned ported enclosure around 4 cubic feet with approximately 60 square inches of port area tuned to 32Hz is recommended.

Is the Sundown Audio Zv7 15 D1 good for SPL systems?

Yes. The Zv7 series is designed for extreme excursion, high power handling, and massive low frequency output, making it ideal for SPL and competition applications.

Can the Sundown Zv7 15 D1 be used in a sealed box?

No. Sundown Audio does not recommend sealed enclosures for the Zv7 series.

What makes the Zv7 different from the previous Zv6?

The Zv7 features a significantly larger motor structure, stronger motor force, improved cooling, enhanced inductive linearity, and a massive 42mm Xmax for deeper and cleaner bass reproduction.
