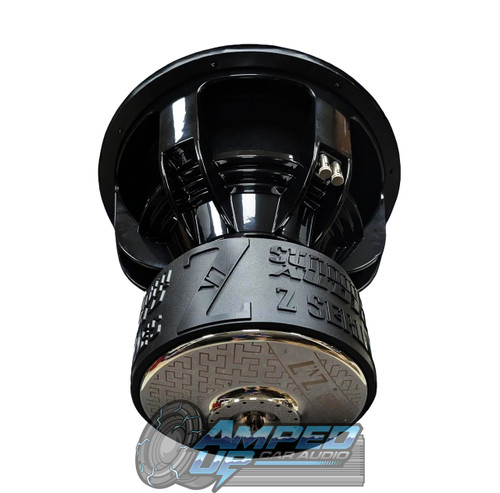

Sundown Audio Zv7 15" D2 Subwoofer Product Description
The Sundown Audio Zv7 15" D2 Subwoofer is designed for extreme low frequency bass, brutal excursion capability, and serious competition level output. Built as part of Sundown Audio’s legendary ultra high excursion lineup, the Zv7 15 D2 pushes performance further than ever before with a larger motor, stronger motor force, improved cooling, and incredible linearity under massive power.
Positioned above the Xv4 and M Series in Sundown Audio’s 2025 lineup, the Zv7 series was engineered from the ground up for bass enthusiasts who demand devastating low bass in compact ported enclosures while maintaining excellent sound quality and ultra low distortion.
At the core of the Sundown Audio Zv7 15 D2 is Sundown’s patented mega platform frame paired with the largest Z series motor structure ever produced. The massive quad stacked 265mm motor assembly features a nearly 4 inch magnet stack height combined with a hyper extended pole design and extreme clearances. This allows over 4 inches peak to peak mechanical travel before bottoming, giving the Zv7 an incredibly smooth and nearly bottomless suspension feel under heavy excursion.
The Zv7 motor structure produces approximately 50% greater motor force than the previous Zv6 generation, resulting in stronger control, greater output capability, and improved efficiency. Sundown also incorporates a huge 3.3 inch 4 layer round wire aluminum voice coil wound with their proprietary fat wire winding method for outstanding thermal handling and long term reliability.
Cooling performance has been dramatically improved with an advanced airflow system featuring a patent pending airflow directing pole cap, six pole vent channels, sixteen gap vents, and a cross drilled slotted top plate system. This advanced cooling package helps keep voice coil temperatures under control during long demos and extreme competition use.
To further improve linearity and reduce distortion, the Zv7 features a massive 9mm thick Faraday ring combined with a newly engineered inductance sleeve system. This design delivers some of the most linear inductive performance ever achieved in a mega platform Sundown subwoofer.
With an incredible 42mm one way Xmax, the Sundown Audio Zv7 15 D2 is built to produce violent low bass with outstanding control and extremely low distortion.
Features
- 3500 Watts RMS power handling
- 7000 Watts peak power
- Dual 2 Ohm voice coil configuration
- Patented Sundown mega platform frame
- Massive quad stacked 265mm motor structure
- 10.8 inch motor diameter
- 3.3 inch 4 layer aluminum voice coil
- Proprietary fat wire winding technology
- Hyper extended pole design
- Over 4 inches peak to peak mechanical travel
- 42mm one way Xmax
- Patent pending advanced cooling system
- Sixteen gap vents for maximum airflow
- Large 9mm Faraday ring
- Extremely low distortion performance
- Optimized for low tuned ported enclosures
- Designed for extreme low frequency bass
Physical Dimensions: Download
Sundown Audio Zv7 15 D2 Specifications
| Specification |
Value |
| RMS Power |
3500 Watts |
| Peak Power |
7000 Watts |
| Voice Coil Configuration |
Dual 2 Ohm |
| Re |
3.84 Ohms |
| Fs |
30.399 Hz |
| Vas |
35.564 L |
| Qes |
0.364 |
| Qms |
5.607 |
| Qts |
0.342 |
| Le |
3.716 mH |
| BL |
34.26 NA |
| Mms |
582.893 g |
| Sensitivity |
89.316 dB |
| Xmax |
42mm |
| Mounting Depth |
13.94 Inches |
| Cutout Diameter |
13.93 Inches |
| Motor Diameter |
10.8 Inches |
| Displacement |
0.29 cu ft |
Recommended Enclosure Specifications
Ported Box
- Recommended Box Size: 4.0 cu ft
- Recommended Port Area: 60 sq in
- Recommended Port Tuning: 32Hz
Sealed Box
4th Order Bandpass
- Sealed Side: 2.0 cu ft
- Ported Side: 6.0 cu ft
- Port Area: 120 sq in
- Port Length: 8 inches
Why Buy the Sundown Audio Zv7 15 D2?
The Sundown Audio Zv7 15 D2 is designed for bassheads who want extreme excursion, massive low frequency output, and exceptional reliability under serious abuse. With its enormous motor structure, advanced airflow cooling system, and highly optimized suspension design, the Zv7 15 D2 delivers devastating bass while maintaining impressive sound quality and ultra low distortion.
Whether you are building a competition setup, demo vehicle, or powerful daily driver, the Zv7 15 D2 is engineered to dominate low frequency performance.
Frequently Asked Questions
How much power can the Sundown Audio Zv7 15 D2 handle?
The Sundown Audio Zv7 15 D2 is rated for 3500 watts RMS and 7000 watts peak power.
What enclosure works best for the Sundown Zv7 15 D2?
A low tuned ported enclosure around 4 cubic feet with approximately 60 square inches of port area tuned to 32Hz is recommended for optimal performance.
Is the Sundown Audio Zv7 15 D2 good for SPL builds?
Yes. The Zv7 series is specifically designed for extreme excursion, high power handling, and massive low frequency output, making it ideal for SPL and competition systems.
Can the Sundown Audio Zv7 15 D2 be used in a sealed enclosure?
No. Sundown Audio does not recommend sealed enclosures for the Zv7 series.
What improvements does the Zv7 have over the previous Zv6?
The Zv7 features a significantly larger motor, stronger motor force, improved cooling and airflow, enhanced inductive linearity, and a massive 42mm Xmax for deeper and cleaner bass reproduction.
